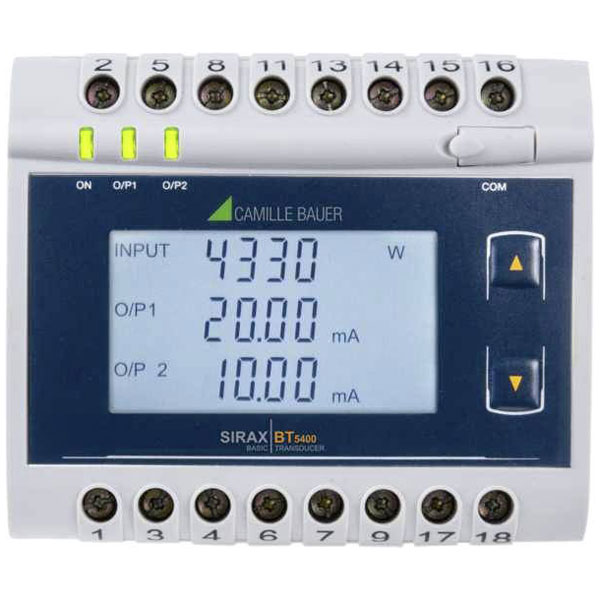

Camille Bauer 175316 SIRAX BT5400 Signal Converter for Power Measurement

The Camille Bauer 175316 signal converter is a versatile device primarily used in control systems and automation applications. It features various converter types, such as digital and analogue, to efficiently transduce and isolate signals. Typical applications include use as a temperature transducer, frequency converter, and interface converter.

Configuration	Software
Connection	Clamp
Dim	(L x W x H) 106.5 x 43.75 x 65.5 mm
Height	65.5mm
Input signal (current)	0 - 5 A
Input signal (voltage)	100 - 500 V
Length	106.5mm
Max. ambient temperature	45°C
Max. operating voltage	300V DC/AC
Min. ambient temperature	0°C
Min. operating voltage	60V DC/AC
Operating Voltage	60 - 300 V DC/AC
Output (current)	4 - 20mA
Output (voltage)	0 - 10 V
Type	Signal converter
Width	43.75mm
