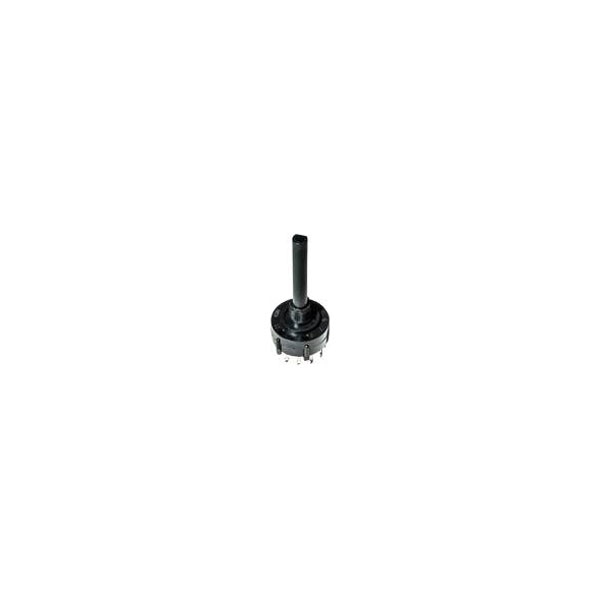

C & K Switches A10514RNCBE Rotary Switch 5 Positions SP5T 20VDC 0.02A Latched

The C & K Switches A10514RNCBE rotary switch is designed for applications requiring precise position control, offering five switch positions with a 30-degree increment. Operating at 20 volts DC, this switch is suitable for electronic and industrial equipment where reliable performance is essential. Its robust design makes it ideal for use in control panels and instrumentation.

Type	Rotary switch
Number of Positions	5
Index Stops	5
Number of Decks	1
Current Rating (Amps)	20mA
Actuator Type	Rotary Shaft
Angle of Throw	1 x 30 °
Axle Ø	6.35mm
Contact Material	Copper alloy
Length	38.10mm
Lighting Type	None
Maximum Temperature	+85°C
Min. temperature	-30°C
Power	0.40VA
Recess depth	14.48mm
Switch position	1 x On/Off
Switch postions	5
