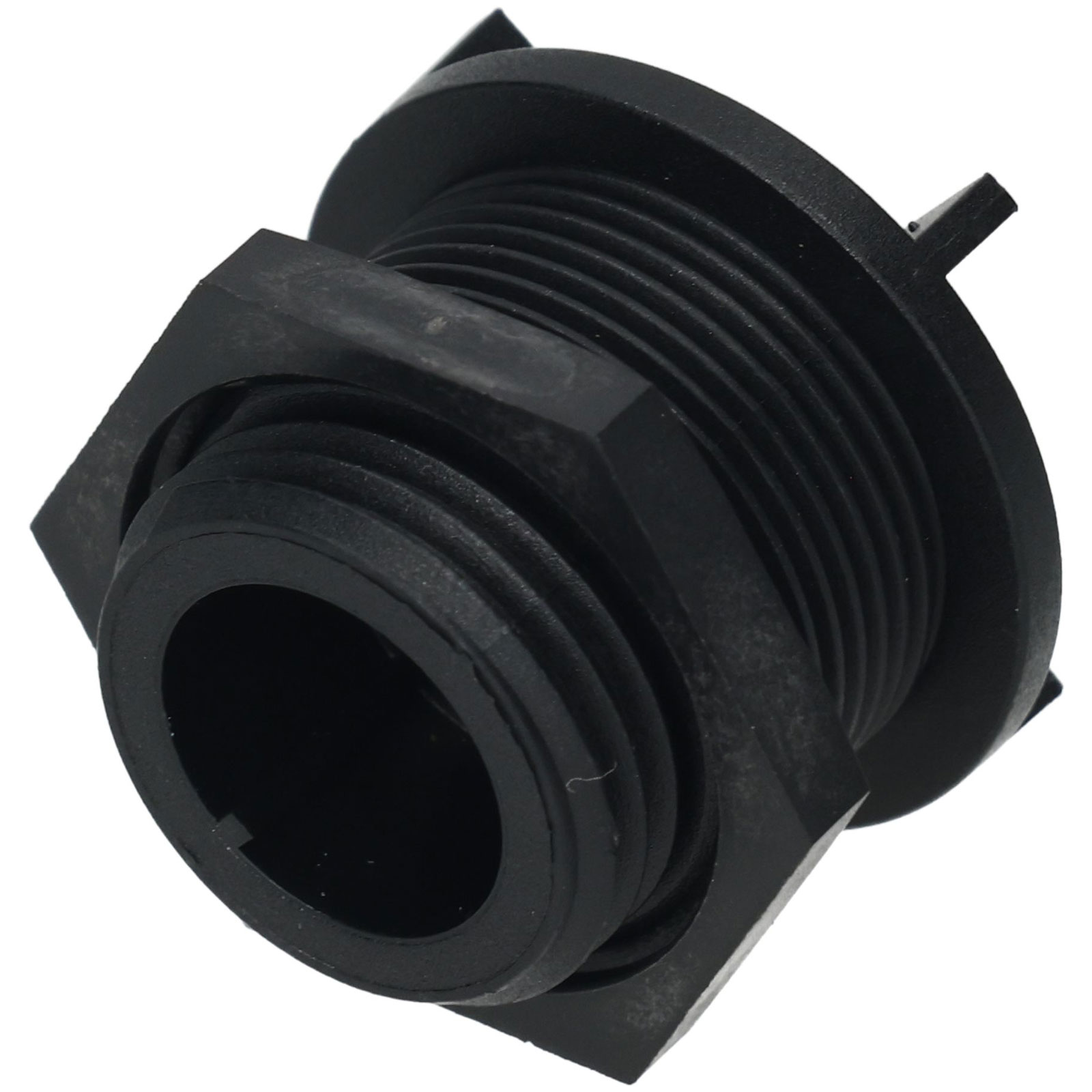

The Bulgin PXP4013/08P is a sealed circular rear panel mount connector from the 4000 Series Buccaneer range, designed for dependable power and signal connections in demanding industrial, marine and outdoor environments.
Featuring 8 plug contacts, a rear panel mounting body and compatibility with 4000 Series Buccaneer flex cable connectors, this connector delivers secure mating and excellent protection against dust, water and harsh operating conditions.
The connector utilises a single-hole panel mounting design and is supplied without contacts, allowing users to select the appropriate crimp or solder contacts for their application.
Features
- 4000 Series Buccaneer rear panel mount connector
- 8 plug contacts
- Rear panel mounting body
- Single-hole panel mounting design
- Contacts supplied separately
- IP68 rated when mated, tested at 10m depth for 2 weeks
- Gold-plated contact system for reliable electrical performance
- Compatible with crimp or solder contacts
- Flame-retardant PBT/PC housing (UL94 V-0)
- Compatible with PXP4010, PXP4000 and PXP4002 4000 Series Buccaneer flex cable connectors
Electrical Specifications
- Number of contacts: 8
- Current rating: 8A UL, 5A CSA
- Voltage rating: 320V AC/DC
- Contact resistance: <5mΩ
- Insulation resistance: >10⁶MΩ @ 500VDC
- AC breakdown voltage: 2.5kV
Mechanical & Environmental
- Connector type: Rear panel mount connector
- Mounting style: Rear panel mounting
- Single-hole fixing design
- Operating temperature: -40°C to +120°C
- Contact accommodation: 18 to 20 AWG for 8-contact versions
- Termination: Crimp or solder contacts, supplied separately
- Housing material: Polybutylene Terephthalate/Polycarbonate (PBT/PC)
- Flammability rating: UL94 V-0
- Environmental protection: IP68
- Sealed to 10m depth for 2 weeks when mated
- Vibration resistance: BS EN 60068-2-64:2008 Test Fh
- Shock resistance: BS EN 60068-2-27:2009 Test Ea
- Mating cycles: >1000
Applications
- Industrial control and automation systems
- Panel-mounted power and signal interfaces
- Marine electrical equipment
- Instrumentation and monitoring systems
- Outdoor electrical enclosures
- Harsh-environment power and signal interconnections
| Type |
Plug, mount |
| Number of Contacts |
8 |
| Connector Size |
19.6 mm dia |
| Gender |
Plug |
| AWG |
20 - 18 |
| Colour |
Black |
| Connection Angle |
180 |
| Connector Body Material |
Polyamide |
| IP Rating |
IP68 |
| Mounting Hole Diameter |
19.10mm |
| Nominal Current |
8A |
| Nominal current - rounded value |
8A |
| Nominal Voltage |
600V |
| Number of pins |
8 |
| Number of Ways |
8 |
| Seal |
Renk cover |
| Series |
Buccaneer 4000 |
| Termination |
Crimp |
| Total no. of pins |
8 |
