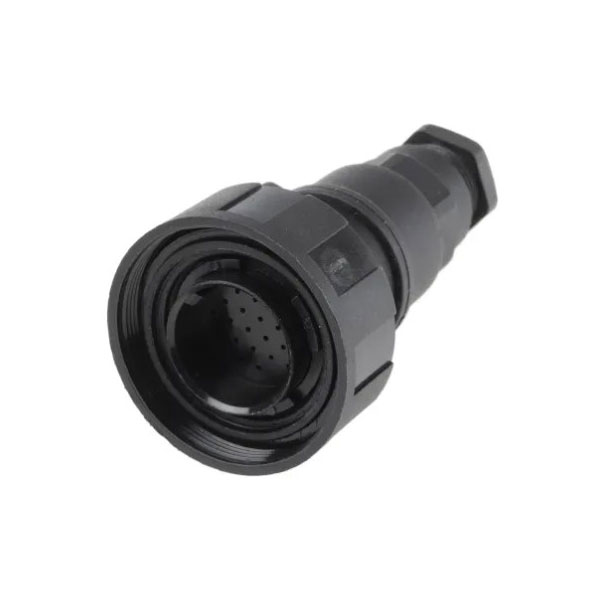

Bulgin PX0820/P Standard Buccaneer Series 25 Way Flex Cable Plug Connector IP68

The Bulgin PX0820/P is a 25-way flex cable plug connector from the Standard Buccaneer Series, designed for high-density signal and low-current power connections in demanding industrial environments. Its rugged glass-filled polyamide housing and threaded locking mechanism provide a secure and reliable connection in applications where environmental protection is essential.

This cable-mount plug features 25 male contact positions and supports both crimp and solder termination methods. Designed for cable diameters from 7mm to 9mm, the PX0820/P offers flexibility during installation while maintaining dependable performance in harsh operating conditions.

When mated with a compatible connector, the PX0820/P provides IP68-rated protection against dust and water ingress, making it suitable for instrumentation, control systems, communications equipment, industrial automation and outdoor applications. The connector is compatible with PX07 Series in-line and panel mount connectors.

Features

• Standard Buccaneer Series flex cable plug connector

• 25 contact positions with male pins

• Crimp or solder termination capability

• Accepts 7mm to 9mm cable diameters

• Threaded coupling for secure connection

• Glass-filled polyamide housing for durability in harsh environments

• IP68-rated environmental sealing when mated

• Compatible with PX07 Series in-line and panel mount connectors

• Designed for high-density signal and low-current power connections

Electrical Specifications

• Number of contacts: 25

• Contact type: Male pins

• Termination method: Crimp or solder


Mechanical & Environmental

• Connector type: Flex cable plug connector
• Mounting type: Cable mount

• Plug/socket: Plug

• Cable acceptance: 7mm to 9mm diameter

• Environmental protection: IP68 when mated

• Housing material: Glass-filled polyamide

• Series: Standard Buccaneer


Applications

• Instrumentation systems

• Control systems

• Communications equipment

• Industrial automation

• Outdoor electrical and electronic equipment

• High-density signal interconnections

• Low-current power connections in harsh environments
