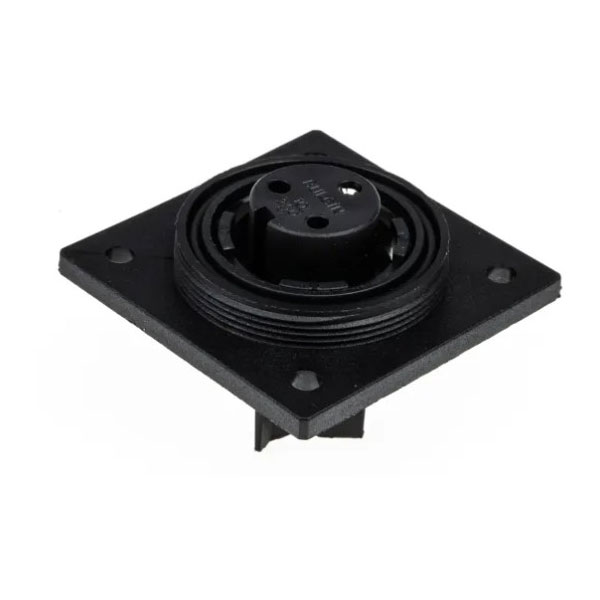

Bulgin PX0765/S Standard Buccaneer Series 3 Way Low Profile Flange Mount Socket

The Bulgin PX0765/S is a 3-way low-profile flange mount socket connector from the Standard Buccaneer Series, designed for secure power connections in harsh industrial and outdoor environments.

Featuring a compact flange-mount design, screw termination and a threaded locking mechanism, the connector provides a reliable, field-serviceable connection without specialised tooling. When mated with a compatible connector, it offers IP68/IP69K-rated protection against dust and water ingress.

Supplied with fitted screw contacts, a sealing gasket and screw sealing grommets, the PX0765/S is ideal for industrial machinery, control panels, marine equipment, outdoor installations and power distribution systems.

• Standard Buccaneer Series low-profile flange mount socket connector
• 3 contacts (2 power + earth) with female sockets
• Screw termination with contacts supplied fitted
• Low-profile flange mounting design
• IP68/IP69K environmental sealing when mated
• Threaded locking system with keyed orientation
• Glass-filled polyamide housing for durability in demanding environments
• Supplied with sealing gasket and screw sealing grommets
