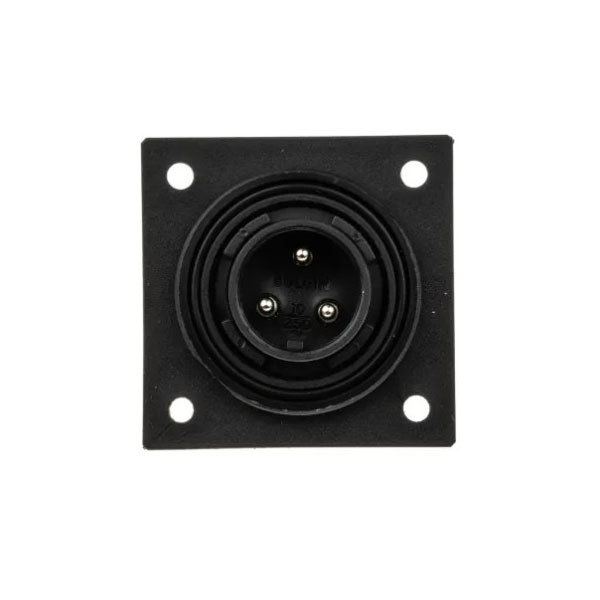

Bulgin PX0765/P Standard Buccaneer Series 3 Way Low Profile Flange Mount Plug

The Bulgin PX0765/P is a 3-way low-profile flange mount plug connector from the Standard Buccaneer Series, designed for secure power connections in demanding industrial and outdoor environments.

Featuring a compact flange-mount design, screw termination and a threaded coupling mechanism, the connector provides a reliable and field-serviceable connection. When mated with a compatible connector, it delivers IP68/IP69K-rated protection against dust and water ingress.

Supplied with fitted screw contacts, a sealing gasket and screw sealing grommets, the PX0765/P is well suited to machinery, control systems, marine equipment, outdoor installations and industrial power distribution applications.

• Standard Buccaneer Series low-profile flange mount plug connector
• 3 contacts (2 power + earth) with male pins
• Screw termination with contacts supplied fitted
• Low-profile flange mounting design
• IP68/IP69K environmental sealing when mated
• Threaded locking system with keyed orientation
• Glass-filled polyamide housing for mechanical durability
• Supplied with sealing gasket and screw sealing grommets
