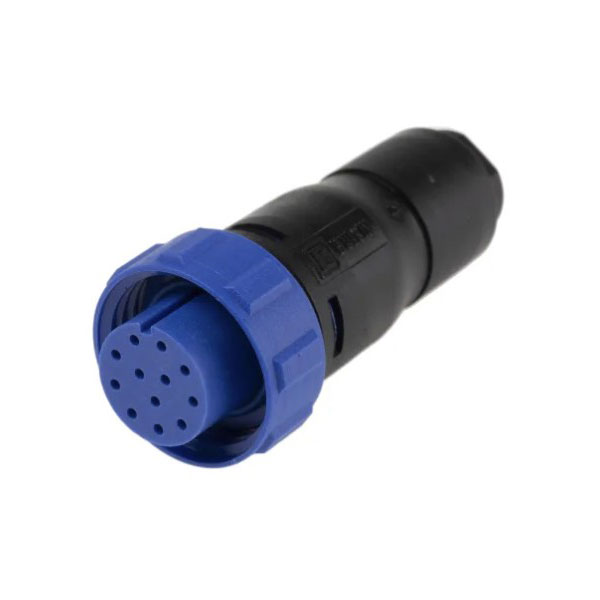

Bulgin PX0411/12S/6065 400 Series Buccaneer 12Pole Inline Cable Connector Socket

The Bulgin PX0411/12S/6065 is a sealed circular inline cable connector from the 400 Series Buccaneer range, designed for dependable power and signal connections in demanding industrial, marine and outdoor environments.

Featuring 12 socket contacts, a robust screw-lock coupling system and a cable gland suitable for cable diameters between 6.0mm and 6.5mm, this connector delivers secure mating and excellent protection against dust, water and harsh operating conditions.

Features

• 400 Series Buccaneer inline cable connector
• 12 socket contacts
• Secure screw-lock coupling mechanism
• Supplied with cable gland and collet for 6.0mm to 6.5mm cable diameter, white coded
• Contacts supplied separately
• IP68 rated when mated, tested at 10m depth for 2 weeks
• IP69K rated for high-pressure washdown environments
• Gold-plated contact system for reliable electrical performance
• 2.5mm contact engagement for electrical integrity
• Flame-retardant polyamide housing, UL94 V-0
• Compatible with PX0400, PX0402 and PX0410 400 Series Buccaneer flex cable connectors

Electrical Specifications

• Number of contacts: 12
• Current rating: 1A
• Voltage rating: 50V AC/DC
• Contact resistance: <5mΩ
• Insulation resistance: >10⁶MΩ @ 500VDC
• AC breakdown voltage: 2.5kV

Mechanical & Environmental

• Connector type: Inline cable connector
• Contact engagement: 2.5mm
• Operating temperature: -40°C to +80°C
• Cable acceptance: 3.0mm to 7.0mm, configured with 6.0mm to 6.5mm gland set
• Contact accommodation: 24 to 28 AWG for 12-contact versions
• Housing material: Polyamide
• Flammability rating: UL94 V-0
• Environmental protection: IP68 and IP69K
• Salt mist resistance: EN60068-2-52 Test Kb, Marine Severity Level 1

Applications

• Industrial control and automation systems
• Outdoor power and signal connections
• Marine electrical equipment
• Instrumentation and monitoring systems
• Transportation equipment
• Harsh-environment power and signal interconnections
