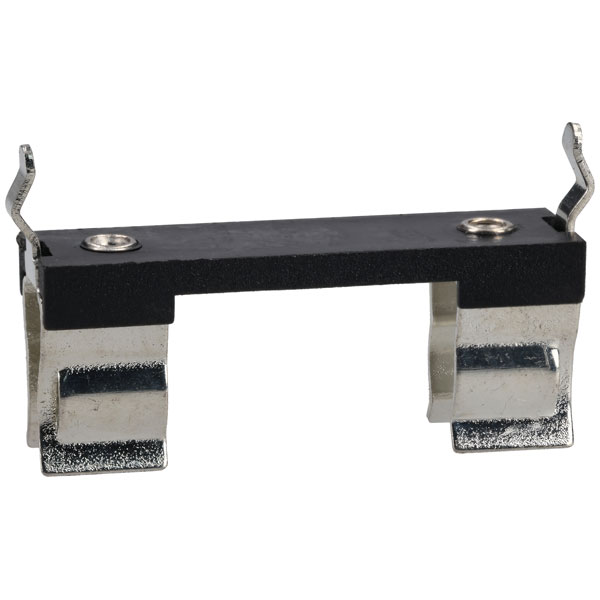

Bulgin FX0321 6.3A 5x20mm Though Hole Open Fuseholder

Bulgin FX0321 6.3A 5x20mm Though Hole Open Fuseholder - The FX0360 is a 6.3A/250V base mount Cartridge Fuse Holder with glass filled nylon base, phosphor bronze/tin-plated contacts and solder lug terminals. This fuse holder features protection category PC1 with no integral protection against electric shock.

• Central countersunk fixing hole
• <gt/>10⁴MΩ at 500VDC Insulation resistance
• 2kV at 50Hz AC Breakdown
• <lt/>10mΩ Contact resistance
• -20 to 85°C Operating temperature range
• UL94HB Flammability rating

• Fuse Size Held: 5mm x 20mm
• No. of Fuses: 1 Fuse
• Voltage Rating VAC: 250V
• Fuse Current: 6.3A
• Holder Terminals: Solder Lug
• Voltage Rating VDC: 250V
