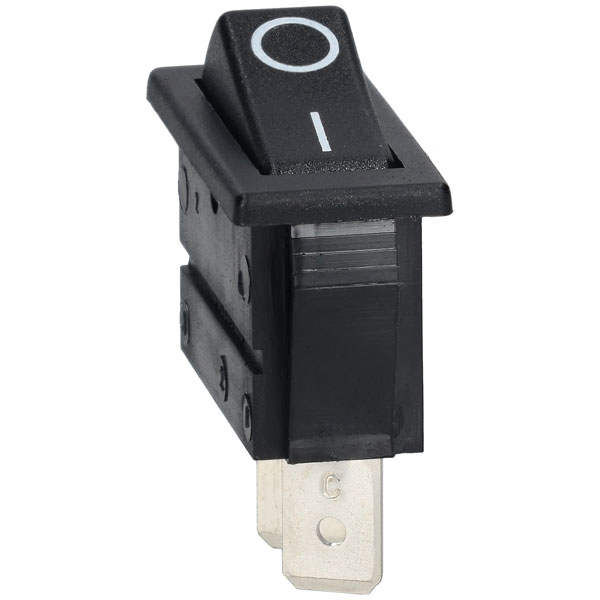

Bulgin C1300ALAAA SPST Non Illuminated Black Panel Mount Rocker Switch

Bulgin C1300ALAAA SPST Non Illuminated Black Panel Mount Rocker Switch - The C1300ALAAA is a single-pole single-throw (SPST) High Inrush Positive Break Switch with softline matte profile rocker, ON-OFF function and 14.0x30.2mm bezel. The 1300 series mechanism ensures contact welds formed at switch-on are positively separated by the plunger tube acting directly on the step in the moving contact.

• 11 x 30mm Panel cut-out
• 6.3 x 0.8mm Terminal size

• Switch Operation: on-Off
• Illumination: Non Illuminated
• Actuator / Cap Colour: Black
• Contact Current Max: 16A
• Contact Current AC Max: 16A
• Contact Voltage DC Nom: 24V
• Panel Cutout Width: 11mm
• Switch Terminals: Quick Connect
• Contact Configuration: SPST
• Switch Mounting: Panel Mount
• Product Range: 1300
• Contact Voltage AC Nom: 250V
• Contact Voltage VAC: 250V
• Panel Cutout Height: 30mm
