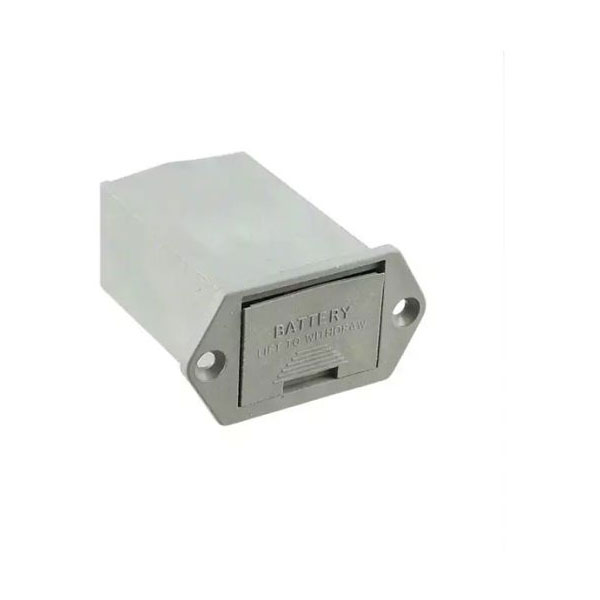

Bulgin BX0023/GY 9V PP3 Battery Holder, Solder Tag Contact - Grey

MPN: BX0023/GY
Brand: Bulgin
Order Code: 18-0191
Country of Origin: United Kingdom

RoHS Compliant
Free UK shipping available

View Full Product Range (2)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£5.85

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Despatched same day - 79 in stockContact us for additional stock

Product Details
Product Range
Quick Quote

A drawer style enclosed panel mounting battery holder from Bulgin.

Accepts a single PP3 type battery
The 'snap-in' drawer is clearly marked to indicate correct battery insertion
PP3 push-on battery snaps are NOT required
Panel cutout 34.5 x 24.5mm, fixing centres 43 x 3.5mm dia, depth behind panel 54mm
Contact with the tin plated phosphor bronze contacts at the rear of the holder is only made when the drawer is fully inserted into the housing
External connection to the holder is made via solder tags at the rear
Bulgin part No. BX0023/GY

Type	Battery Holder
Battery Size	PP3
Number of Cells	1
Mount	Panel Mount
Body Material	Glass filled nylon
Contact Material	Tin nickel plated phosphor bronze
Height	29mm
Length	60mm
Width	53mm
