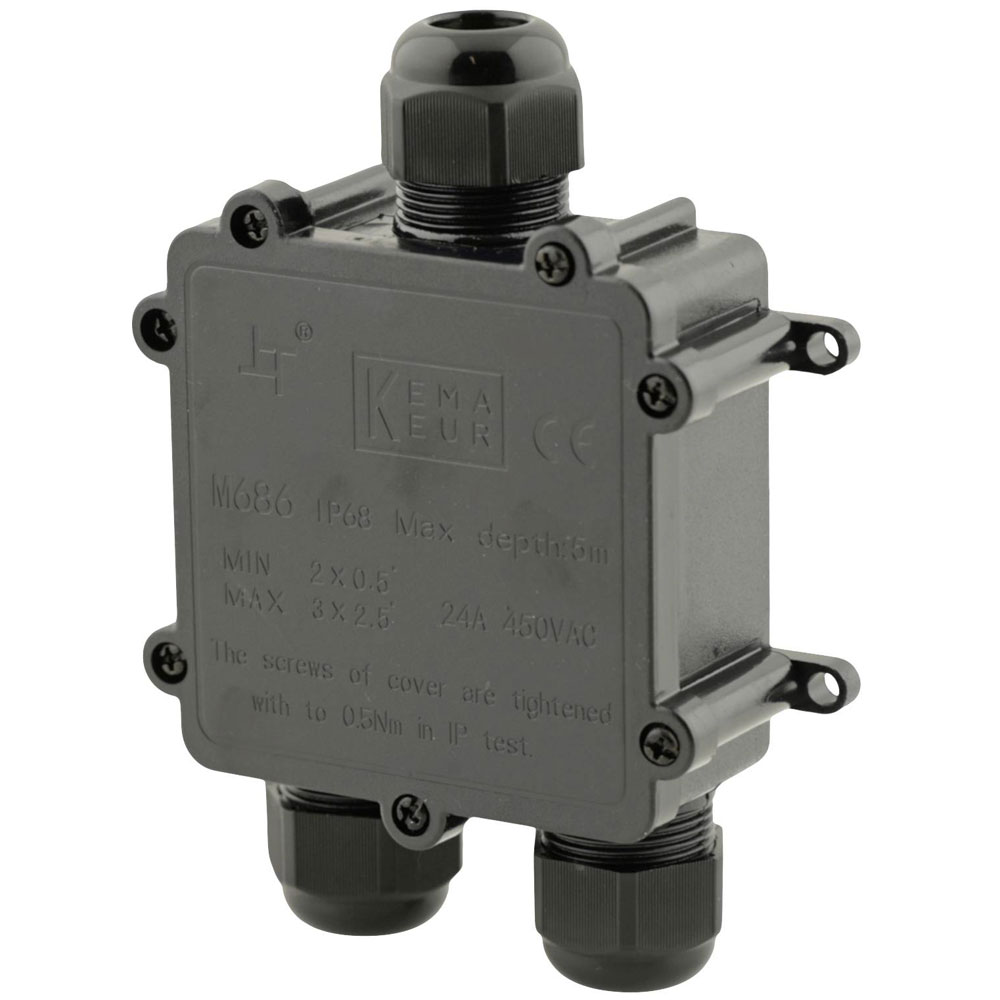

Boxexpert BXPJSGH687-1 Junction Box IP68 35x126x93mm 5 Poles Outdoor Use

Boxexpert
Standard range
Order Code:

08-6443

Brand: Boxexpert MPN: BXPJSGH687-1 EAN-13: 4260543454401
Qty Unit Price (Ex VAT)
1+ £11.47
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
44 in stock, despatched in 4 working days

The Boxexpert BXPJSGH687-1 junction box measures 35 x 126 x 93 mm and is available in 1 pc(s) quantity. Manufactured by Boxexpert, this durable and compact box is designed for housing electrical connections safely. It is typically used in various residential and commercial electrical installations.
Amperage (max.) 24A
Connection 3x M25 (4-14mm cable cross-section) with matching reductions
Contact material Tin plated
Core cross section (max.) 2.5mm²
Core cross section (min.) 0.5mm²
Dim (L x W x H) 35 x 126 x 93 mm
Factory colour Black
Halogen-free Yes
Height 93mm
Inputs / outputs 3 single / 1x input 2x output
IP rating IP68
Length 35mm
Mounting Type Surface-mount
Operating temperature (max.) +105°C
Operating temperature (min.) -40°C
Total number of pins 5
Type Junction box
Voltage (max.) 450V AC
Width 126mm
