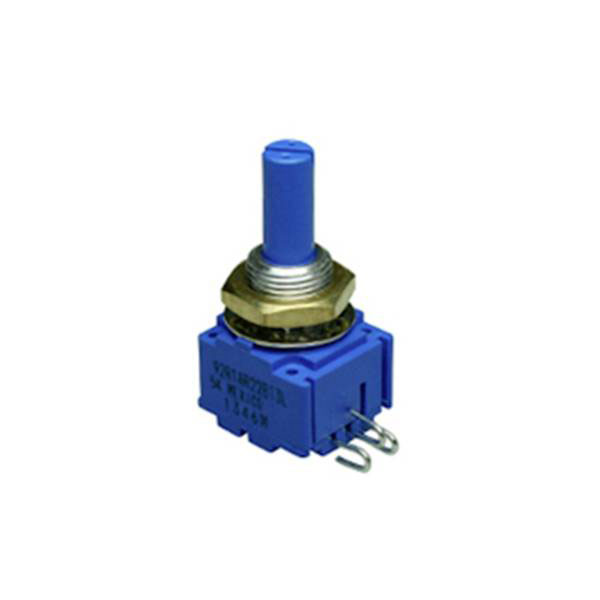

Bourns 92R1A-R22-B13L Plastic film pot 1W 5kΩ Rotary Potentiometer

Bourns 92R1A-R22-B13L is a rotary potentiometer designed with precision and reliability, featuring a plastic film construction that ensures durability and performance. This component operates at a power rating of 1 watt and offers a resistance value of 5 kilo-ohms, making it suitable for various electronic circuit applications requiring precise voltage division. The rotary design of the 92R1A-R22-B13L allows for smooth and accurate adjustments, which is ideal for volume control, signal processing, and tuning circuits in audio equipment and instrumentation. This potentiometer is an excellent choice for engineers looking for a high-quality, resilient component in their designs.

Type	92R1A-R22-B13L
Resistance	5kO
No of Turns	1
Power Rating	1W
Axle Diameter	6mm
Connection	Wire wrap
Content	1
Dimensions	(L x W) 15.88 mm x 17.45 mm
Electrical Angle	240°
Length	15.88mm
Maximum Temperature	125°C
Mechanical Angle	300°
Minimum Temperature	-40°C
Product Type	Plastic film pot
Resistance characteristic	linear
Width	17.45mm
