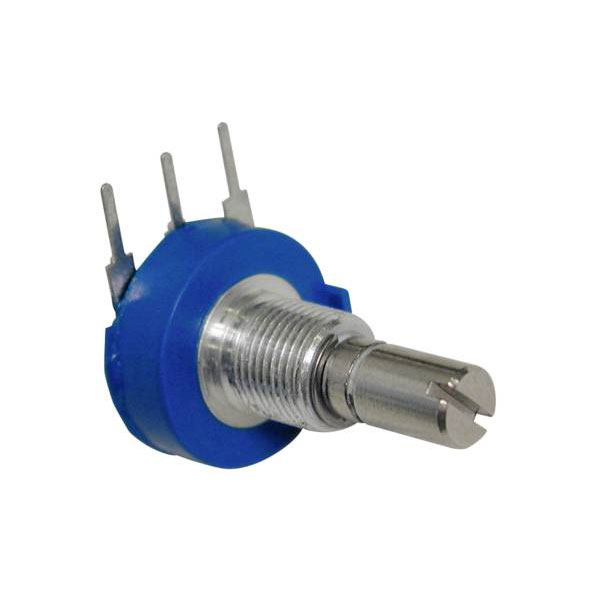

Bourns 3852A-282-103AL Single turn rotary pot 2W 10kΩ 1pc Rotary Potentiometer

Bourns 3852A-282-103AL is a single-turn rotary potentiometer designed for precision control within electronic circuits. This component is rated at 2 watts and has a resistance of 10 kiloohms, making it suitable for various signal adjustment applications. Engineered in the style of a slide potentiometer, it offers a robust solution for tasks requiring reliable linear resistance changes. Commonly utilised in audio equipment, instrumentation, and industrial control systems, the Bourns 3852A-282-103AL combines durability with precise rotational movement to ensure consistent performance across its operating lifespan. With a focus on high-quality construction and dependable functionality, this potentiometer is an ideal choice for engineers seeking reliable performance in a wide array of applications.

Type	3852A-282-103AL
Resistance	10kΩ
No of Turns	1
Power Rating	2W
Axle Diameter	6.35mm
Connection	Solder tag
Content	1
Electrical Angle	250°
Length	19.05mm
Max. temperature	125°C
Maximum Temperature	125°C
Mechanical Angle	280°
Min. temperature	-1°C
Minimum Operating Temperature	-1°C
Product Type	Single turn rotary pot
Resistance characteristic	linear
