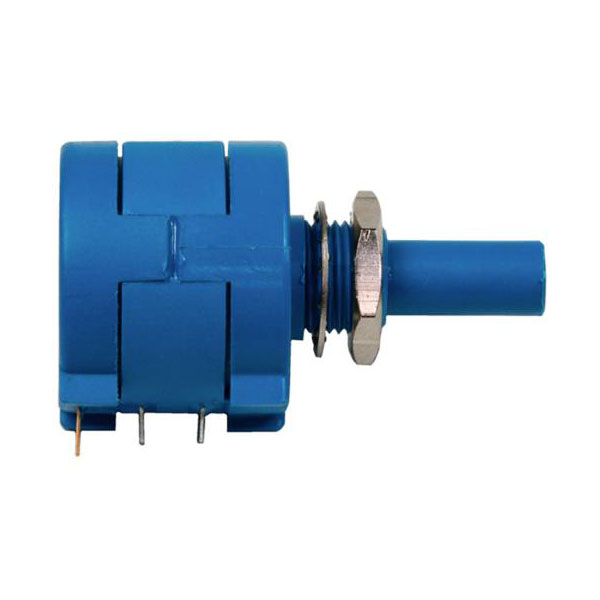

Bourns 3590S-2-201L Precision potentiometer 2 W 200 Ω Rotary type

Bourns 3590S-2-201L Precision Potentiometer, part number 3590S-2-201L, is a high-precision rotary potentiometer engineered for demanding applications requiring precise control of resistance. It features a power rating of 2 watts and a resistance of 200 ohms, making it suitable for precision applications in audio equipment, instrumentation, and control systems. The device classifies as a rotary type, contrary to the slide potentiometer specified, and includes a robust construction to ensure long-term reliability and accuracy. This potentiometer is often employed in situations requiring fine-tuning of electrical signals and feedback systems, providing engineers with consistent performance and dependability.

Type	3590S-2-201L
Resistance	200Ω
No of Turns	10
Power Rating	2W
Axle Diameter	6.34mm
Connection	Solder tag
Content	1
Dimensions	(L x W) 22 mm x 18.6 mm
Electrical Angle	3600°
Length	22mm
Maximum Temperature	125°C
Mechanical Angle	3600°
Minimum Temperature	1°C
Product Type	Precision potentiometer
Resistance characteristic	linear
Width	18.6mm
