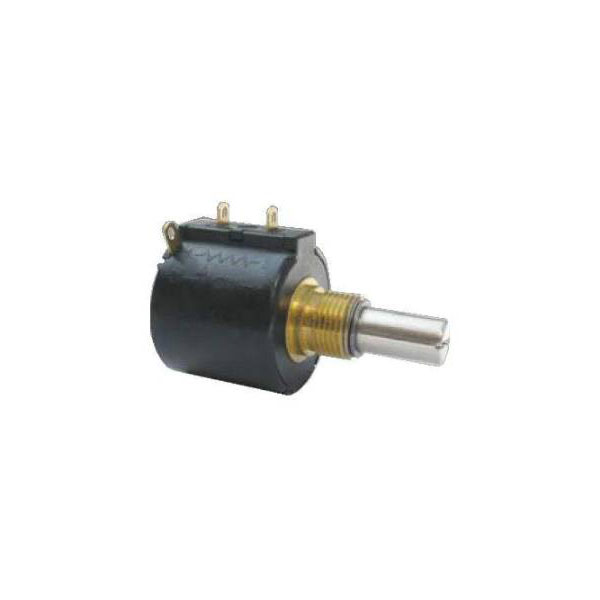

Bourns 3549H-1AA-103A Precision potentiometer 2W 10kΩ Rotary Control

Bourns 3549H-1AA-103A is a precision potentiometer designed with a power rating of 2 watts and a resistance value of 10 kiloohms. As a rotary control component within the category of slide potentiometers, it is engineered for applications requiring precise adjustment and reliable performance. The robust construction of this potentiometer makes it suitable for use in professional audio equipment, industrial automation systems, and instrumentation where linear control of electrical parameters is essential. Its design supports easy integration into analogue circuit designs, offering engineers a dependable solution for fine-tuning signal levels and calibrating equipment settings.

Type	3549H-1AA-103A
Resistance	10kO
No of Turns	10
Power Rating	2W
Axle Diameter	6.35mm
Connection	Solder tag
Content	1
Dimensions	(L x W) 22.48 mm x 19.81 mm
Electrical Angle	3600°
Length	22.48mm
Max. temperature	125°C
Maximum Temperature	125°C
Mechanical Angle	3600°
Min. temperature	-40°C
Minimum Operating Temperature	-40°C
Product Type	Precision potentiometer
Resistance characteristic	linear
Width	19.81mm
