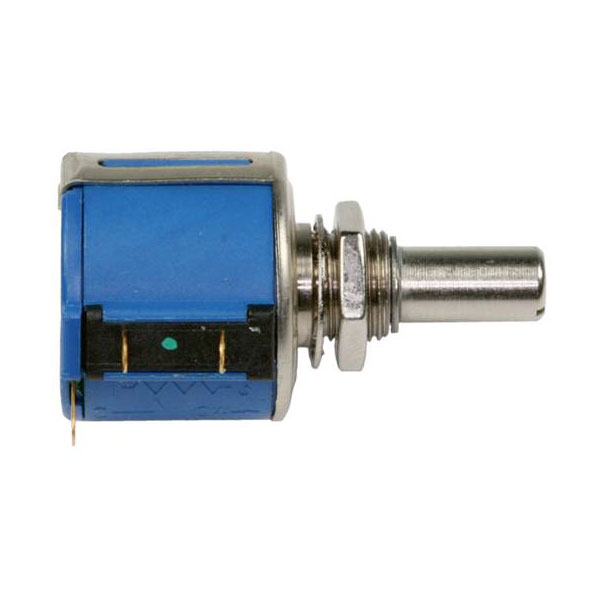

Bourns 3540S-1-203L Precision potentiometer 2 W 20 kΩ Rotary Control

Bourns 3540S-1-203L is a precision potentiometer designed to deliver reliable performance in electronic applications requiring precise variable resistance. This rotary control type slide potentiometer features a resistance value of 20 kO, and it is rated for a power capacity of 2 watts, making it suitable for high-precision electronic measurement and control systems. The robust construction of the 3540S-1-203L ensures stable and repeatable performance, with excellent linearity over its operational range. Typical applications for this component include audio equipment calibration, industrial control systems, and instrumentation requiring accurate adjustment and tuning. With its enduring reliability, the Bourns 3540S-1-203L potentiometer is well-suited for environments where precision and durability are paramount.

Type	3540S-1-203L
Resistance	20kΩ
No of Turns	10
Power Rating	2W
Axle Diameter	6.34mm
Connection	Solder tag
Content	1
Dimensions	(L x W) 22.2 mm x 20 mm
Electrical Angle	3600°
Length	22.2mm
Max. temperature	125°C
Maximum Temperature	125°C
Mechanical Angle	3600°
Min. temperature	1°C
Minimum Operating Temperature	1°C
Product Type	Precision potentiometer
Resistance characteristic	linear
Width	20mm
