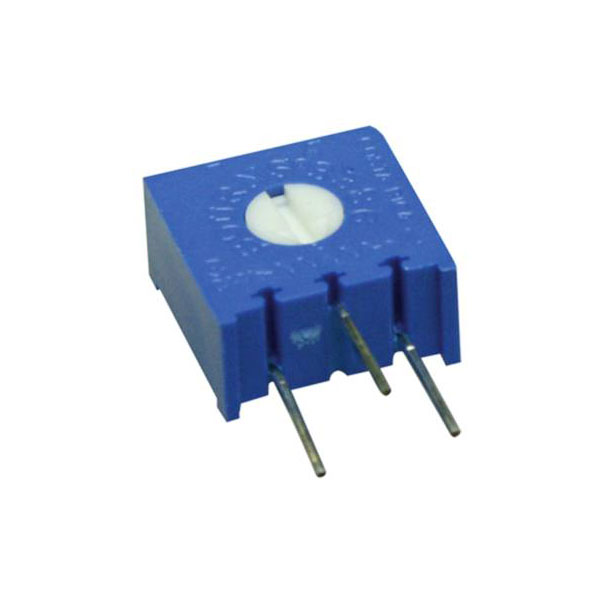

Bourns 3386X-1-103LF Cermet trimmer linear 0.5 W 10 kΩ 280° 310° 1 pc

Bourns 3386X-1-103LF is a robust cermet trimmer designed to offer precise resistance adjustment for electronic circuits. With a resistance value of 10 kO and a power rating of 0.5 watts, this trimmer operates over a rotational range of 280° to 310°, providing flexibility and control in fine-tuning electrical parameters. Its durable construction ensures reliable performance in a variety of engineering applications, such as calibration of sensor circuits, adjustment of amplifier gain, and tuning of filter circuits. Identified alternatively as 2996295, the Bourns 3386X-1-103LF is ideal for use in prototype development as well as in production where precise resistance control is required.

Type	Cermet Trimmer
Resistance	10kΩ
Tolerance	± 10%
Power Rating	0.5W
Adjustment Type	Side
Number of Turns	1
Pitch	2.54mm
Connection	Solder pins
Content	1
Dimensions	(L x W x H) 9.53 x 4.83 x 9.53 mm
Electrical Angle	280°
Height	9.53mm
Length	9.53mm
Maximum Temperature	125°C
Mechanical Angle	310°
Minimum Temperature	-55°C
Operation type	side
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.83mm
