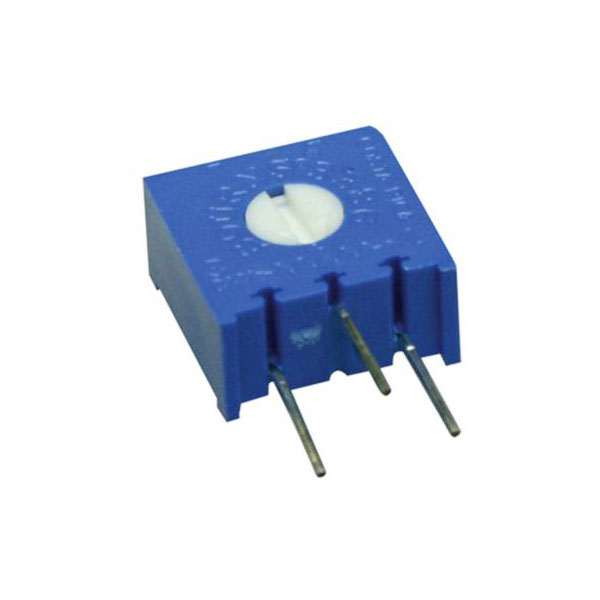

Bourns 3386X-1-102LF cermet trimmer linear 0.5W 1kΩ 280° 310° 1pc

Bourns 3386X-1-102LF is a cermet trimmer potentiometer designed for precise resistance adjustments, featuring a resistance value of 1kO and a power rating of 0.5 watts. This component provides smooth and reliable performance with a rotational angle of adjustment of 280°, while the total mechanical rotation is 310°, ensuring fine-tuning capabilities in various electrical circuits. Its robust design makes it suitable for applications such as calibration equipment, signal processing, and circuit stabilisation. The Bourns 3386X-1-102LF is identified alternately by part number 2996294 and is distinguished for delivering consistent results in demanding environments, catering to the needs of engineers seeking reliability and precision.

Type	Cermet Trimmer
Resistance	1kΩ
Tolerance	± 10%
Power Rating	0.5W
Adjustment Type	Side
Number of Turns	1
Pitch	2.54mm
Connection	Solder pins
Content	1
Dimensions	(L x W x H) 9.53 x 4.83 x 9.53 mm
Electrical Angle	280°
Height	9.53mm
Length	9.53mm
Max. temperature	125°C
Maximum Temperature	125°C
Mechanical Angle	310°
Min. temperature	-55°C
Minimum Operating Temperature	-55°C
Operation type	side
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.83mm
