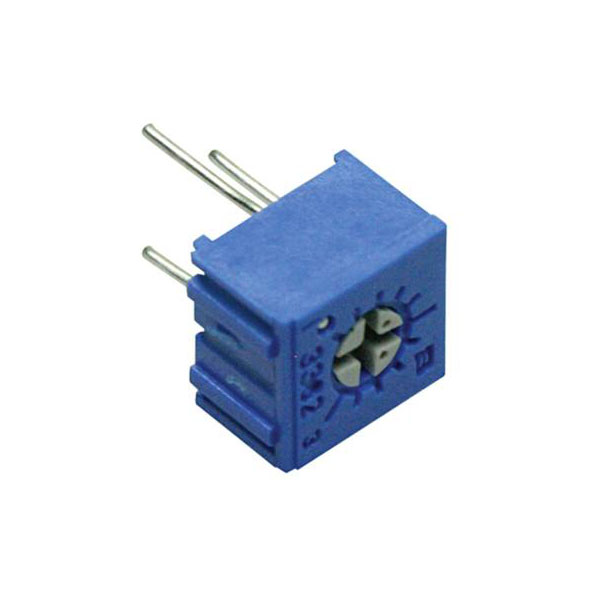

Bourns 3362P-1-253LF Cermet trimmer linear 0.5W 25 kΩ 240° 270° 1 pc

Bourns 3362P-1-253LF is a cermet trimmer potentiometer, also identified as part number 2996280. This precision component features a linear resistance of 25 kO with a power rating of 0.5 watts and provides an adjustable rotation of both 240° and 270°, which allows for precise resistance tuning in electronic circuits. The component's robust construction and compact design make it suitable for various engineering applications, including calibration, tuning, and sensitivity adjustment in both industrial and consumer electronic devices. Ideal for circuits needing precise resistance control, the 3362P-1-253LF is a critical component for ensuring optimal performance in systems requiring fine adjustments. With reliability and durability inherent in its design, this cermet trimmer is a preferred choice in the fields of instrumentation and automation.

Type	Cermet Trimmer
Resistance	25kΩ
Tolerance	± 10%
Power Rating	0.5W
Adjustment Type	Top
Number of Turns	1
Pitch	2.54mm
Connection	Solder pins
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 6.6 x 6.99 x 4.88 mm
Electrical Angle	240°
Height	4.88mm
Length	6.6mm
Maximum Temperature	125°C
Mechanical Angle	270°
Minimum Temperature	-55°C
Operation type	top
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	6.99mm
