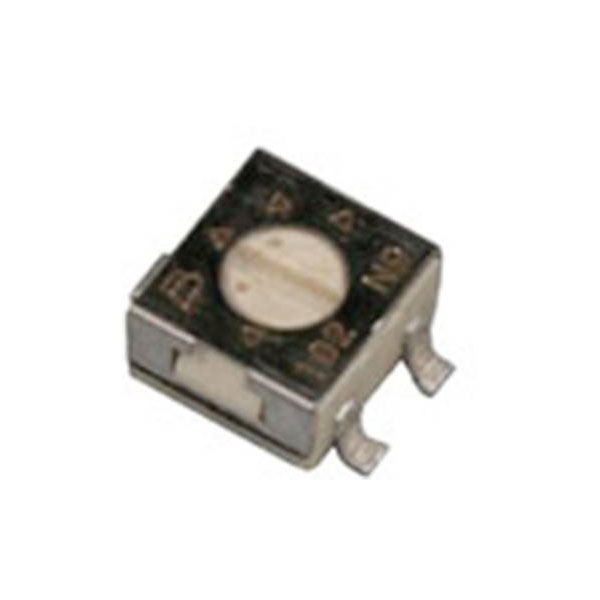

Bourns 3314G-1-104E Cermet trimmer 0.25 W 100 kOhm 210° 240° 1 pc

Bourns 3314G-1-104E, a cermet trimmer potentiometer, alternatively known as 2996254. This device is designed for precise resistance adjustment and features a resistance of 100 kOhm with a power rating of 0.25 watts. It offers an adjustable rotation of 210° to 240°, allowing engineers to fine-tune circuits with exacting needs in terms of variable resistance. Typical applications include calibration and tuning in audio, RF, and instrumentation circuits, where precise control of electrical parameters is critical for optimal performance. As a reliable component, the Bourns 3314G-1-104E aids in ensuring accurate and stable performance outcomes across various engineering projects.

Type	Cermet Trimmer
Resistance	100kO
Tolerance	20%
Power Rating	0.25W
Adjustment Type	Top
Number of Turns	1
Pitch	2.3 x 4mm
Connection	SMT
Content	1
Cross Section	2.35mm
Dimensions	(L x W x H) 4.5 x 4.5 x 2.55 mm
Electrical Angle	210°
Height	2.55mm
Length	4.5mm
Maximum Temperature	125°C
Mechanical Angle	240°
Minimum Temperature	-55°C
Operation type	top
Temperature Coefficient	100ppm/K
Tolerance ±	20%
Width	4.5mm
