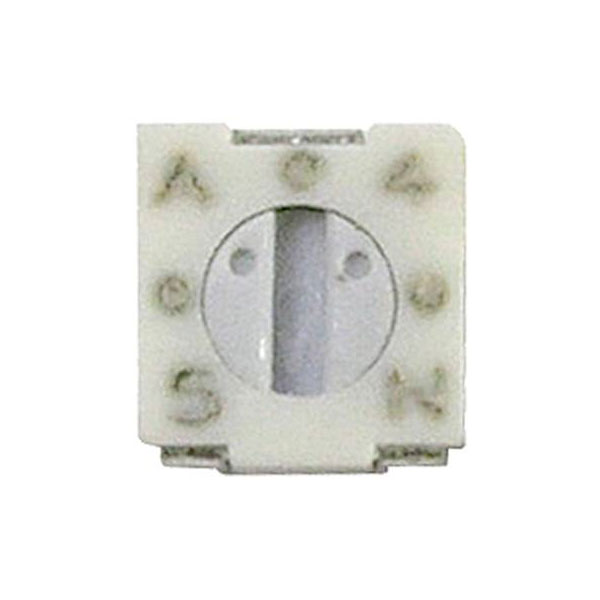

Bourns 3313J-1-502E Cermet Trimmer 5 kΩ 0.125 W 220° 250° 1 pc

Bourns 3313J-1-502E, recognised alternatively as 2996251, a addition to their range of cermet trimmers. This precision trimmer resistor is rated at 5 kilohms with a power rating of 0.125 watts, featuring a rotational adjustment angle of 220 to 250 degrees, optimising it for fine-tuning in circuit applications requiring precision and reliability. Designed for engineers, this component is particularly useful in applications such as calibration of sensors, tuning of RF circuits, and adjustment of signal processing equipment. The product is robustly constructed for long-lasting performance in various electronic environments, ensuring reliability and stability in usage.

Type	Cermet Trimmer
Resistance	5kΩ
Power Rating	0.12500W
Adjustment Type	Top
Number of Turns	1
Connection	SMT
Content	1
Cross Section	2.3mm
Dimensions	(L x W x H) 3.5 x 3.2 x 2.2 mm
Electrical Angle	220°
Height	2.2mm
Length	3.5mm
Maximum Temperature	125°C
Mechanical Angle	250°
Minimum Temperature	-55°C
Operation type	top
Temperature Coefficient	100ppm/K
Tolerance ±	20%
Width	3.2mm
