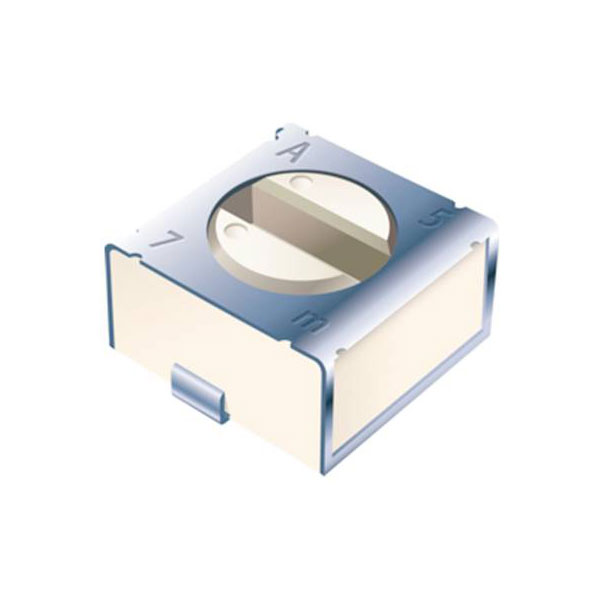

Bourns 3312J-1-202E Cermet trimmer 0.1 W 2 kΩ 255° max angle

Bourns 3312J-1-202E is a precision Cermet trimmer potentiometer recognised for its durability and reliability in electronic circuits. This product, also referred to by the alternate description 2996248, provides an adjustable resistance of 2 kO and is rated for a power handling capability of 0.1 watts. The trimmer features a maximum rotation angle of 255 degrees, allowing for stable and precise tuning in various applications. It is particularly ideal for use in calibration circuits, feedback loops, and other configurations requiring fine voltage or current adjustments to improve circuit performance. The robust construction makes it suitable for a wide range of environmental conditions, providing dependable operation in diverse electronic systems.

Type	Cermet Trimmer
Resistance	2kΩ
Power Rating	0.1W
Adjustment Type	Top
Number of Turns	1
Connection	SMT
Content	1
Dimensions	(L x W x H) 2.5 x 2.8 x 1.7 mm
Electrical Angle	255°
Height	1.7mm
Length	2.5mm
Maximum Temperature	125°C
Mechanical Angle	285°
Minimum Temperature	-55°C
Operation type	top
Temperature Coefficient	100ppm/K
Tolerance ±	20%
Width	2.8mm
