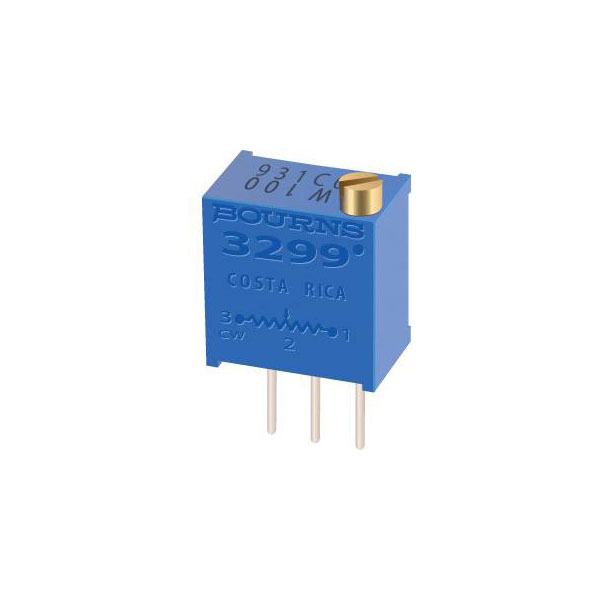

Bourns 3299W-1-502LF Cermet trimmer linear 0.5 W 5 kΩ 9° 1 pc

Bourns 3299W-1-502LF is a precisely engineered cermet trimmer potentiometer designed for linear resistance adjustments. It is characterised by a resistance value of 5 kO and a power rating of 0.5 watts, featuring an adjustment increment of 9°. This product, also identified as 2996240, offers reliable performance in various electronic applications such as calibration in circuits, tuning filters, and setting bridge voltages for optimal component matching. Its robust construction ensures stability and long service life, making it suitable for demanding environments where precise resistance setting is essential.

Type	Cermet Trimmer
Resistance	5kΩ
Tolerance	± 10%
Power Rating	0.5W
Adjustment Type	Top
Number of Turns	25
Pitch	2.54mm
Connection	Solder pins
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 10.03 x 9.53 x 6.1 mm
Electrical Angle	9°
Height	6.1mm
Length	10.03mm
Maximum Temperature	125°C
Minimum Temperature	-55°C
Operation type	top
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	9.53mm
