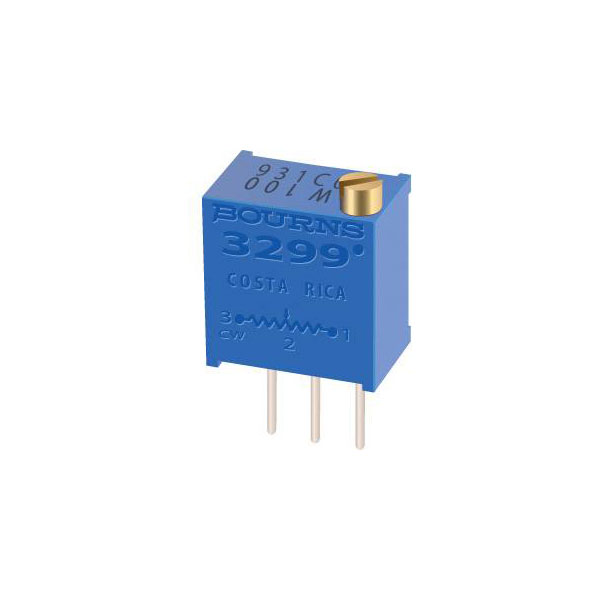

Bourns 3299W-1-103LF Trimmer linear Cermet 0.5W 10kΩ 9° 1pc

Bourns 3299W-1-103LF is a precision trimmer potentiometer, offering reliable performance in a compact form factor. This cermet trimmer has a resistance value of 10kO, with a linear taper and a power rating of 0.5 watts, making it suitable for applications requiring precise adjustment and stability. Designed with a 9° adjustment angle, it facilitates fine-tuning in varying circuit conditions. Often utilised in frequency control, calibration adjustments, and signal processing circuits, this trimmer potentiometer can be essential for engineers involved in detailed circuit design and development. Its robust construction and dependable characteristics enhance its suitability for a variety of electronic and electrical applications.

Resistance	10kΩ
Power Rating	0.5W
Connection	Solder pins
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 10.03 x 9.53 x 6.1 mm
Electrical Angle	9°
Height	6.1mm
Length	10.03mm
Maximum Temperature	125°C
Minimum Temperature	-55°C
No. of rotations	25
Operation type	top
Product Type	Cermet trimmer
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	9.53mm
