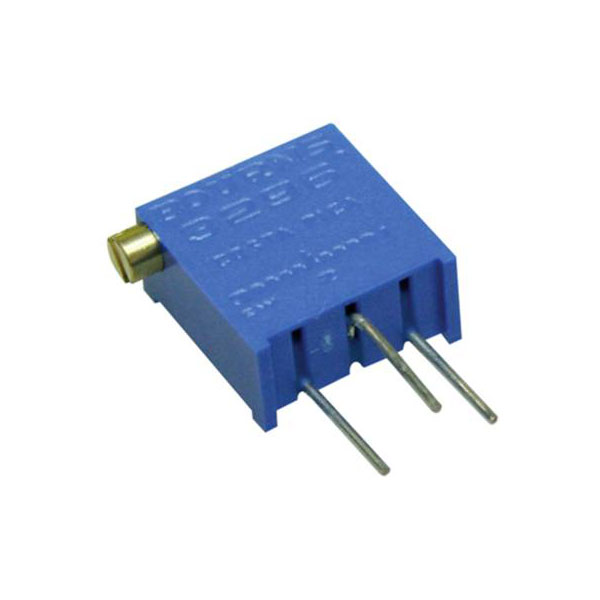

Bourns 3296Z-1-504LF Cermet trimmer linear 0.5 W 500 kΩ 9° 1 pc Trimmers

Bourns 3296Z-1-504LF, with the alternate designation 2996235, is a precision cermet trimmer designed for applications requiring reliable resistance adjustments. This product features a linear rotary adjustment mechanism with a resistance value of 500 kO and a power rating of 0.5 W. The trimmer is engineered with a 9° adjustment angle, making it suitable for fine-tuning within electronic circuits. Ideal for use in applications such as calibration, signal conditioning, and tuning circuits, the 3296Z-1-504LF ensures stable performance and precise control in demanding environments. The robust construction of this trimmer makes it a dependable component for both prototyping and final production stages.

Type	Cermet Trimmer
Resistance	500kΩ
Tolerance	± 10%
Power Rating	0.5W
Adjustment Type	Side
Number of Turns	25
Pitch	2.54mm
Connection	Solder pins
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 9.53 x 4.83 x 10.03 mm
Electrical Angle	9°
Height	10.03mm
Length	9.53mm
Max. temperature	125°C
Maximum Temperature	125°C
Min. temperature	-55°C
Minimum Operating Temperature	-55°C
Operation type	side
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.83mm
