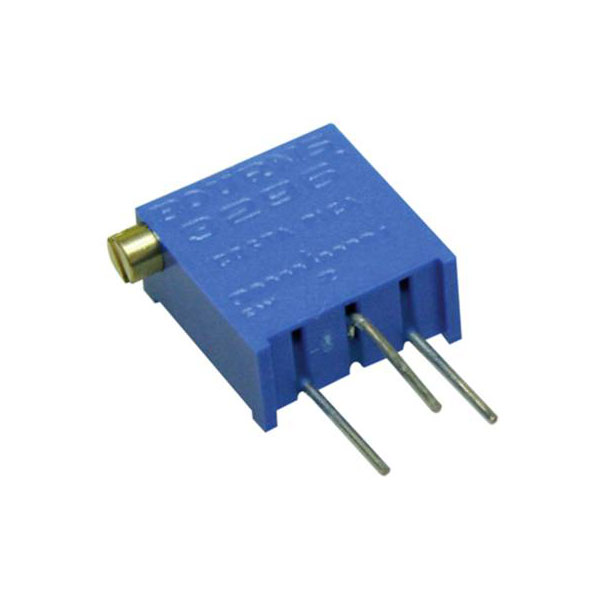

Bourns 3296Z-1-253LF 3296Z Cermet trimmer linear 0.5 W 25 kΩ 9° 1 pc

Bourns 3296Z-1-253LF cermet trimmer is a precision, linear, adjustable resistor designed to provide reliable conductance control in circuitry applications. With a resistance value of 25 kO, a power rating of 0.5 W, and an angular adjustment capability of 9 degrees, this trimmer is suitable for tuning and calibration tasks where fine resistance adjustment is needed. Commonly implemented in electronic circuits for tasks such as signal processing, feedback control, and gain setting in amplifiers, this component's design ensures stable performance over its operational lifespan. The robust construction of the Bourns 3296Z variant, also referred to by its alternate description 2996231, makes it ideal for use in both consumer electronics and industrial systems requiring precise resistance management.

Type	Cermet Trimmer
Resistance	25kΩ
Tolerance	± 10%
Power Rating	0.5W
Adjustment Type	Side
Number of Turns	25
Pitch	2.54mm
Connection	Solder pins
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 9.53 x 4.83 x 10.03 mm
Electrical Angle	9°
Height	10.03mm
Length	9.53mm
Max. temperature	125°C
Maximum Temperature	125°C
Min. temperature	-55°C
Minimum Operating Temperature	-55°C
Operation type	side
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.83mm
