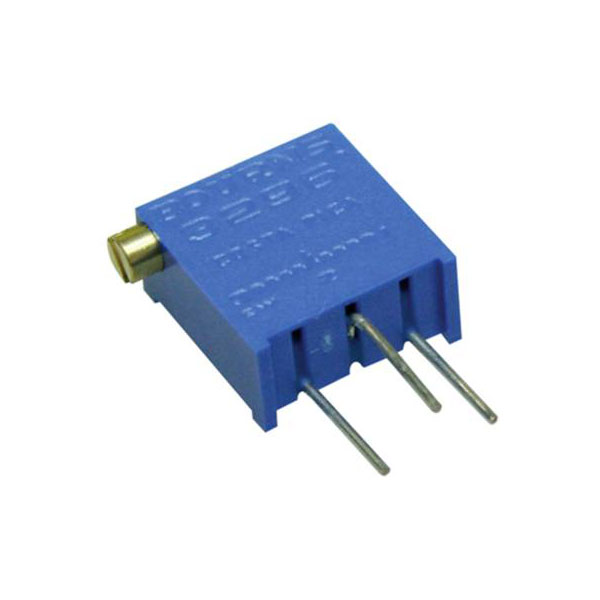

Bourns 3296Z-1-203LF Cermet trimmer linear 0.5 W 20 kΩ 9 ° 1 pc blue

Bourns 3296Z-1-203LF is a precision cermet trimmer potentiometer designed for linear applications, featuring a power rating of 0.5 watts and a nominal resistance of 20 kO. The component is engineered for fine-tuning in electronic circuits, offering a precise adjustment angle of 9 degrees to achieve optimal circuit tuning. Its robust construction ensures reliability and stability in performance-critical applications, making it suitable for precision electronics, calibration instruments, and control systems. The alternative description for this product is 2996230.

Type	Cermet Trimmer
Resistance	20kΩ
Tolerance	± 10%
Power Rating	0.5W
Adjustment Type	Side
Number of Turns	25
Pitch	2.54mm
Connection	Solder pins
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 9.53 x 4.83 x 10.03 mm
Electrical Angle	9°
Height	10.03mm
Length	9.53mm
Max. temperature	125°C
Maximum Temperature	125°C
Min. temperature	-55°C
Minimum Operating Temperature	-55°C
Operation type	side
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.83mm
