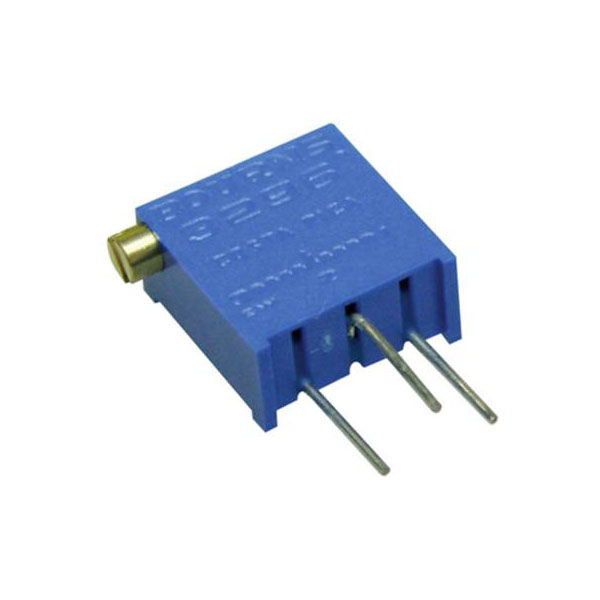

Bourns 3296Z-1-202LF Cermet trimmer linear 0.5 W 2 kΩ 9° 1 pc

Bourns 3296Z-1-202LF is a precision cermet trimmer potentiometer designed for linear resistance adjustment, offering a maximum power rating of 0.5 watts and a resistance value of 2 kO. This product features a rotational adjustment of nine degrees, facilitating fine-tuning in circuitry. The Bourns 3296Z-1-202LF, also referred to as 2996229, is ideally suited for applications such as calibrating instruments, adjustment of gain and sensitivity in circuits, and balancing networks. Its robust construction ensures stability and reliability in diverse electronic environments, making it a preferred choice for engineers engaged in circuit design and optimisation.

Type	Cermet Trimmer
Resistance	2kΩ
Tolerance	± 10%
Power Rating	0.5W
Adjustment Type	Side
Number of Turns	25
Pitch	2.54mm
Connection	Solder pins
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 9.53 x 4.83 x 10.03 mm
Electrical Angle	9°
Height	10.03mm
Length	9.53mm
Max. temperature	125°C
Maximum Temperature	125°C
Min. temperature	-55°C
Minimum Operating Temperature	-55°C
Operation type	side
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.83mm
