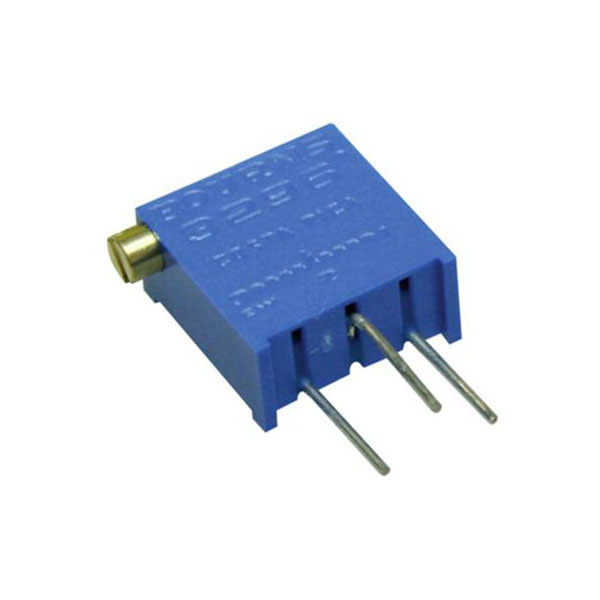

Bourns 3296Z-1-105LF Cermet trimmer linear 0.5 W 1 MΩ 9° 1 pc

Bourns 3296Z-1-105LF is a high-precision cermet trimmer designed for applications requiring linear resistive adjustment. This component offers a resistance value of 1 MO with a power rating of 0.5 W, making it suitable for fine-tuning circuits in various electronic devices. With a mechanical adjustment angle of 9°, it provides reliable and repeatable performance, essential for precision adjustment tasks in instrumentation, control systems, and audio equipment. The trimmer is often utilised by engineers in the design and calibration of analogue circuits where stable and accurate resistance settings are critical. Known also by its alternate description, 2996228, the 3296Z-1-105LF embodies Bourns' commitment to quality and durability in electronic components.

Resistance	1MΩ
Power Rating	0.5W
Connection	Solder pins
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 9.53 x 4.83 x 10.03 mm
Electrical Angle	9°
Height	10.03mm
Length	9.53mm
Maximum Temperature	125°C
Minimum Temperature	-55°C
No. of rotations	25
Operation type	side
Product Type	Cermet trimmer
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.83mm
