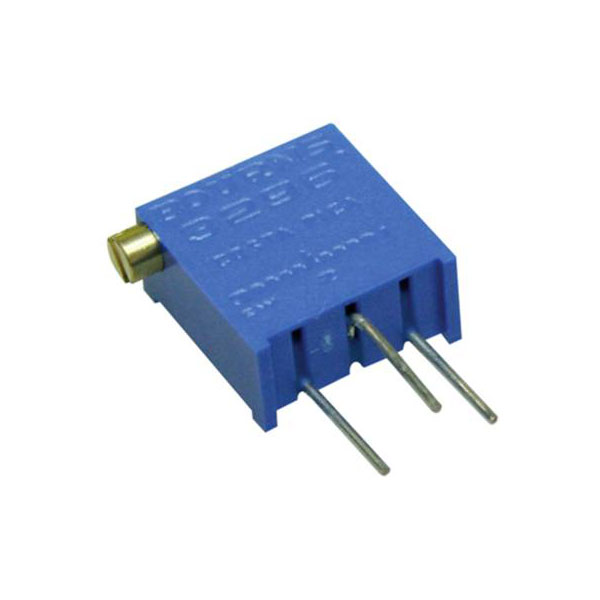

Bourns 3296Z-1-104LF Cermet trimmer 0.5W 100kΩ 9° Linear 1 pc

Bourns 3296Z-1-104LF is , also known by the alternate description 2996227. This cermet trimmer is engineered for precise resistance adjustments, featuring a resistance value of 100 kO and a linear adjustment with a 9° angle of rotation. It is rated for a power dissipation of 0.5 watts, making it suitable for a range of applications requiring high reliability and precision, such as in calibration circuits and tuning circuits. Manufactured with an emphasis on stability and resilience, this trimmer is commonly used by engineers in advanced electronic designs where exact component values are critical.

Resistance	100kΩ
Power Rating	0.5W
Connection	Solder pins
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 9.53 x 4.83 x 10.03 mm
Electrical Angle	9°
Height	10.03mm
Length	9.53mm
Maximum Temperature	125°C
Minimum Temperature	-55°C
No. of rotations	25
Operation type	side
Product Type	Cermet trimmer
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.83mm
