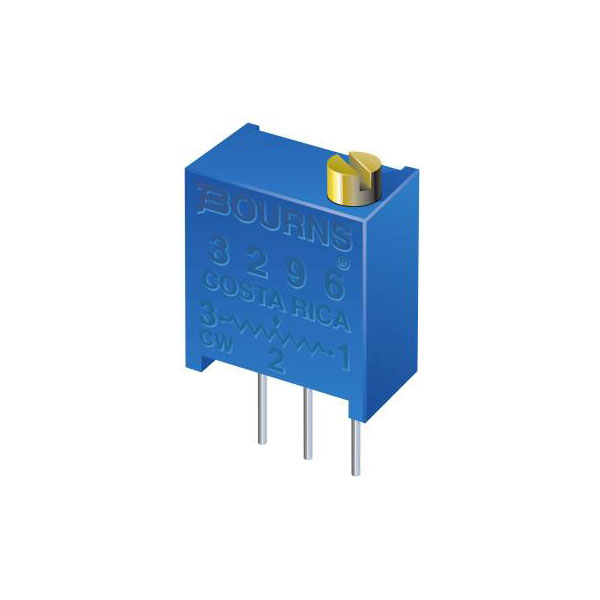

Bourns 3296W-1-205LF Cermet trimmer 0.5W 2MΩ 9° single-turn

Bourns 3296W-1-205LF is a cermet trimmer potentiometer that provides precise resistance adjustments for various electronic applications. This single-turn device features a resistance value of 2MO, a power rating of 0.5W, and a rotational life characterised by a 9° adjustment angle for fine tuning. The trimmer is designed for reliability and longevity with a cermet element, which is well-suited for environments requiring stable, high-resolution resistance settings. It finds frequent use in applications such as calibration circuits, sensor adjustments, and other electronic modules where consistent, accurate resistance modification is crucial. This product, also referred to as 2996190, offers engineers a robust solution for precision control within diverse electronic systems.

Resistance	2MΩ
Power Rating	0.5W
Connection	Solder pins
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 9.53 x 4.83 x 10.03 mm
Electrical Angle	9°
Height	10.03mm
Length	9.53mm
Maximum Temperature	125°C
Minimum Temperature	-55°C
No. of rotations	25
Operation type	top
Product Type	Cermet trimmer
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.83mm
