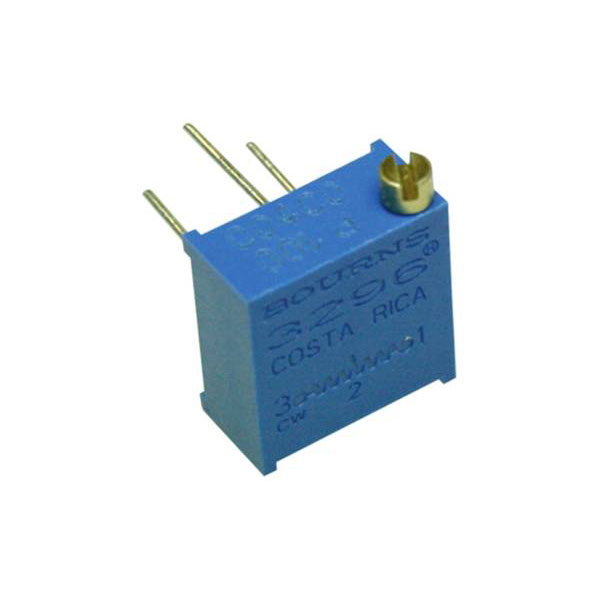

Bourns 3296P-1-502LF Cermet trimmer linear 0.5 W 5 kΩ 9° 1 pc(s)

Bourns 3296P-1-502LF is a cermet trimmer potentiometer designed for precision resistance adjustment. This model features a resistive value of 5 kO and is capable of handling a power rating of 0.5 watts, making it suitable for electronic circuits requiring fine-tuning of resistance to achieve optimal performance. The trimmer achieves a linear resistance track and provides users with a rotatable adjustment angle of 9°, ensuring precise calibration. Typical applications include use in audio equipment, instrumentation, and control systems where exact resistance settings are crucial. As an alternative identifier, it is also known by the description 2996178 - Bourns 3296P-1-502LF.

Resistance	5kΩ
Power Rating	0.5W
Connection	Solder pins
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 9.53 x 4.83 x 10.03 mm
Electrical Angle	9°
Height	10.03mm
Length	9.53mm
Maximum Temperature	125°C
Minimum Temperature	-55°C
No. of rotations	25
Operation type	side
Product Type	Cermet trimmer
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.83mm
