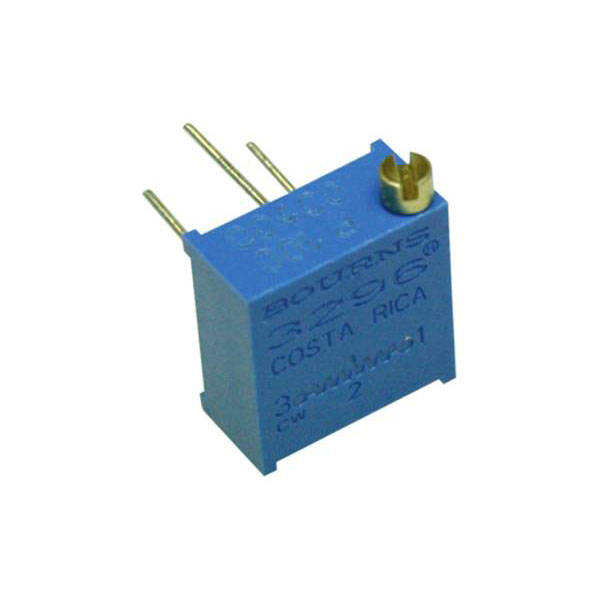

Bourns 3296P-1-203LF Cermet trimmer linear 0.5 W 20 kΩ 9 ° 1 pc blue

Bourns 3296P-1-203LF is a high-precision cermet trimmer potentiometer designed for fine resistance adjustment in electronic circuits. This product, also listed as 2996177, features a resistance value of 20 kilohms with a linear adjustment and a power rating of 0.5 watts, ensuring consistent performance in various circuit design applications. The trimmer is capable of a ±9° adjustment, allowing for precise tuning, and comes in a compact blue package that facilitates easy integration into a wide range of electronic systems. This component is expertly suited for use in applications such as calibration in test equipment, control panels, and audio systems where fine resistance adjustments are crucial for optimal performance.

Resistance	20kΩ
Power Rating	0.5W
Connection	Solder pins
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 9.53 x 4.83 x 10.03 mm
Electrical Angle	9°
Height	10.03mm
Length	9.53mm
Maximum Temperature	125°C
Minimum Temperature	-55°C
No. of rotations	25
Operation type	side
Product Type	Cermet trimmer
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.83mm
