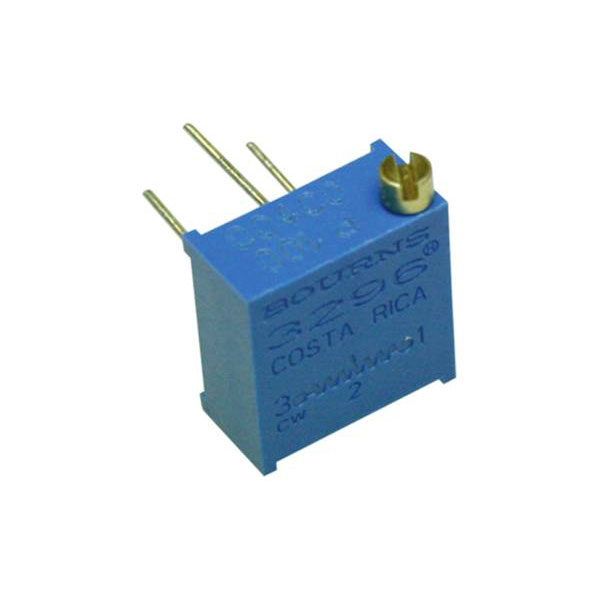

Bourns 3296P-1-103LF Cermet trimmer linear 10 kΩ 0.5 W 9° 1 pc

Bourns 3296P-1-103LF is a high-precision cermet trimmer potentiometer, also recognised as 2996175, designed for linear performance with a resistance value of 10 kO. This component is capable of dissipating 0.5 watts of power and features an adjustment resolution of 9°, making it ideal for fine-tuning circuits in a wide range of electronic applications. The device is commonly used in calibration settings, such as voltage regulation, signal conditioning, and analogue circuit adjustments, where precise resistance setting is essential. Its robust cermet construction ensures reliability and stability in performance, which is crucial for both industrial and consumer electronics. The Bourns 3296P-1-103LF is typically used by engineers for tasks that require accurate and stable resistive tuning within electronic circuits.

Resistance	10kΩ
Power Rating	0.5W
Connection	Solder pins
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 9.53 x 4.83 x 10.03 mm
Electrical Angle	9°
Height	10.03mm
Length	9.53mm
Maximum Temperature	125°C
Minimum Temperature	-55°C
No. of rotations	25
Operation type	side
Product Type	Cermet trimmer
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.83mm
