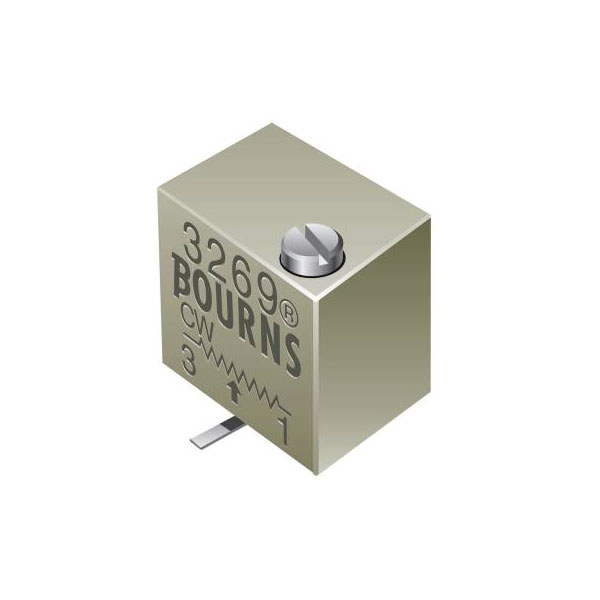

Bourns 3269W-1-502LF Trimmer Cermet Linear 0.25 W 5 kΩ 4320 ° 1 pc

Bourns 3269W-1-502LF is a precision trimmer potentiometer designed for applications requiring fine-tuning of resistance in electronic circuits. This cermet linear trimmer features a resistance value of 5 kO and can handle a power rating of up to 0.25 watts, providing reliable performance in a compact form factor. With an adjustment angle of 4320 degrees, it allows for precise resistance modifications, making it suitable for calibration and tuning in analogue circuits, signal processing, and control systems. The robust construction and consistent performance of this component make it ideal for use in both consumer electronics and industrial equipment, where stability and accuracy are critical. Identified alternatively as 2996173, the Bourns 3269W-1-502LF is offering engineers versatility and precision in their design applications.

Resistance	5kΩ
Power Rating	0.25W
Connection	SMT
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 6.35 x 4.32 x 7.44 mm
Electrical Angle	4320°
Height	7.44mm
Length	6.35mm
Maximum Temperature	150°C
Minimum Temperature	-65°C
No. of rotations	12
Operation type	top
Product Type	Cermet trimmer
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.32mm
