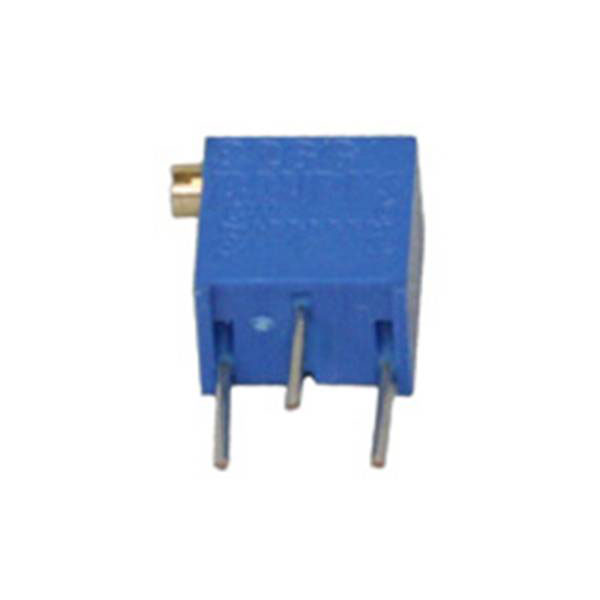

Bourns 3266X-1-202LF Cermet trimmer linear 0.25 W 2 kΩ 4320° 1 pc

Bourns 3266X-1-202LF is a precision cermet trimmer potentiometer designed for fine-tuning electrical resistance in various applications. The part features a resistance value of 2 kO, a power rating of 0.25 watts, and a full rotational adjustment range of 4320°. Notably, this component is ideal for calibration and adjustment tasks in electronic circuits where reliable and stable performance is crucial, such as in communication equipment, instrumentation, and control systems. With its long life and reliable cermet construction, the Bourns 3266X-1-202LF ensures precise control and stability, meeting the demanding requirements of professional electronics design. The product is a offering, also identified by the alternate description 2996166 - Bourns 3266X-1-202LF.

Type	Cermet Trimmer
Resistance	2kΩ
Tolerance	± 10%
Power Rating	0.25W
Adjustment Type	Side
Number of Turns	12
Pitch	2.54mm
Connection	Solder pins
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 6.71 x 4.5 x 7.24 mm
Electrical Angle	4320°
Height	7.24mm
Length	6.71mm
Max. temperature	125°C
Maximum Temperature	125°C
Min. temperature	-55°C
Minimum Operating Temperature	-55°C
Operation type	side
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.5mm
