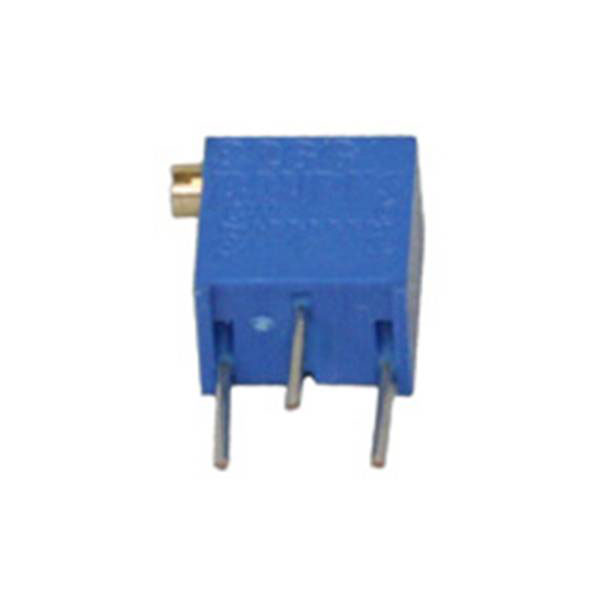

Bourns 3266X-1-102LF Cermet trimmer linear 0.25 W 1 kΩ 4320° 1 pc

Bourns 3266X-1-102LF, identified alternately as 2996163, is a precision-engineered cermet trimmer designed for fine adjustments in electronic circuits. This linear trimmer potentiometer features a resistance of 1 kO and is rated for a power handling capability of 0.25 watts, making it suitable for applications requiring precise resistance tuning over a full-scale travel of 4320 degrees. The device is commonly utilised in various circuit tuning and calibration tasks, providing reliable performance in control systems, feedback loops, and signal processing applications. Engineered with durability and precision in mind, the Bourns 3266X-1-102LF offers a robust solution for engineers looking to maintain high accuracy in their electronic designs.

Type	Cermet Trimmer
Resistance	1kO
Tolerance	± 10%
Power Rating	0.25W
Adjustment Type	Side
Number of Turns	12
Pitch	2.54mm
Connection	Solder pins
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 6.71 x 4.5 x 7.24 mm
Electrical Angle	4320°
Height	7.24mm
Length	6.71mm
Maximum Temperature	125°C
Minimum Temperature	-55°C
Operation type	side
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.5mm
