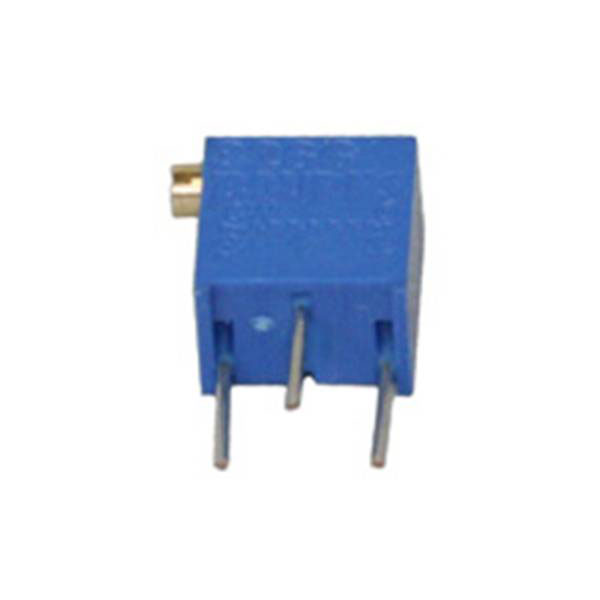

Bourns 3266X-1-101LF 3266X series Cermet trimmer linear 0.25W 100Ω 4320°

Bourns 3266X-1-101LF is within the 3266X series, also known by the alternate description 2996162. This cermet trimmer potentiometer provides precise adjustable resistance with a linear taper, rated at 0.25 watts and 100 ohms, making it suitable for fine-tuning and calibrating circuits. The trimmer is engineered with a rotational range of 4320°, allowing for substantial resolution in resistance adjustment. Commonly used in applications such as signal processing equipment, measurement instruments, and other electronic devices requiring precise voltage regulation, its robust design ensures long-term reliability and stability in demanding environments.

Resistance	100Ω
Power Rating	0.25W
Connection	Solder pins
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 6.71 x 4.5 x 7.24 mm
Electrical Angle	4320°
Height	7.24mm
Length	6.71mm
Maximum Temperature	125°C
Minimum Temperature	-55°C
No. of rotations	12
Operation type	side
Product Type	Cermet trimmer
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.5mm
