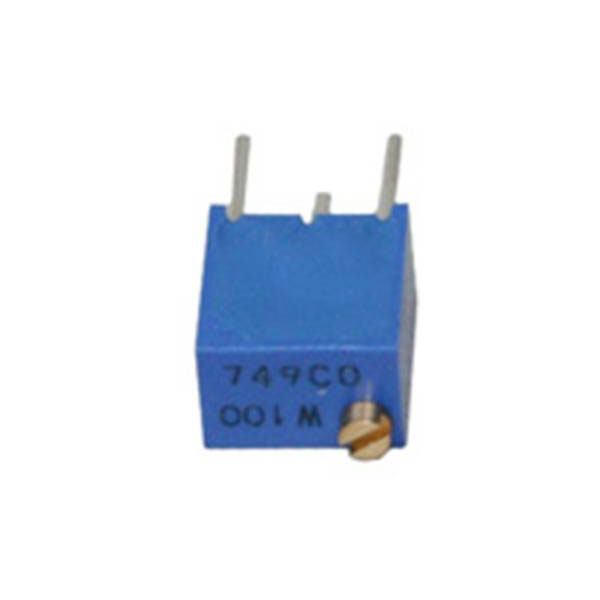

Bourns 3266W-1-101LF Cermet trimmer linear 0.25 W 100 Ω 4320 ° 1 pc

Bourns 3266W-1-101LF is a high-precision cermet trimmer potentiometer designed for reliable linear resistance adjustment. This product, also referred to under the alternate description 2996147 - Bourns 3266W-1-101LF, features a resistance value of 100 Ohms with a power rating of 0.25 watts and a rotational adjustment range of 4320 degrees, allowing for fine-tuning in various circuits. The device is commonly utilised in applications requiring precise resistance adjustment, such as calibration circuits, sensor trimming, and control systems in electronic equipment. Its robust design ensures stability and longevity, making it suitable for a wide range of industrial and commercial uses.

Type	Cermet Trimmer
Resistance	100Ω
Tolerance	± 10%
Power Rating	0.25W
Adjustment Type	Top
Number of Turns	12
Pitch	2.54mm
Connection	Solder pins
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 6.71 x 4.5 x 7.24 mm
Electrical Angle	4320°
Height	7.24mm
Length	6.71mm
Max. temperature	125°C
Maximum Temperature	125°C
Min. temperature	-55°C
Minimum Operating Temperature	-55°C
Operation type	top
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.5mm
