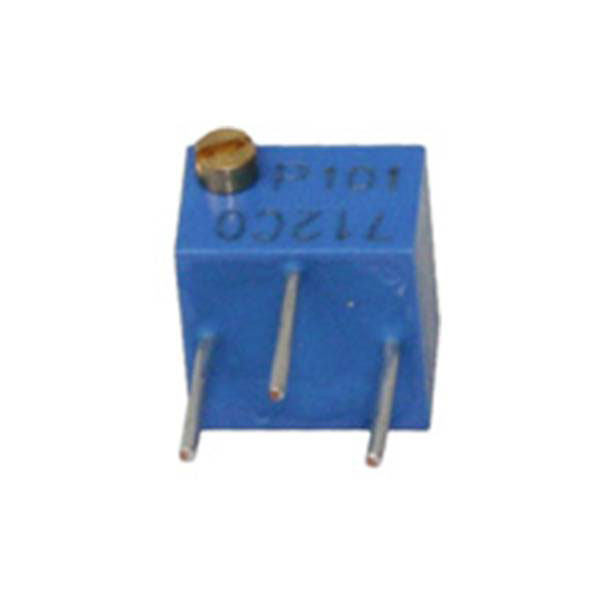

Bourns 3266P-1-104LF 3266P Cermet trimmer linear 0.25W 100kΩ 4320°

Bourns 3266P-1-104LF offers a reliable and precise solution for applications requiring fine resistance adjustment, with its 100 kO cermet trimmer housed in a robust 3266P package. This linear trimmer potentiometer, identified by the alternate description 2996144 - Bourns 3266P-1-104LF, is designed for a power rating of 0.25 watts and allows for up to 4320 degrees of adjustment, enabling high-resolution tuning. The precision and stability offered by this component make it ideal for use in calibration circuits, sensor signal modulation, and adaptive feedback systems, particularly where space is constrained and high component density is prevalent. Its reliable performance in both analogue and digital domains ensures versatility across a range of engineering applications.

Resistance	100kΩ
Power Rating	0.25W
Connection	Solder pins
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 6.71 x 6.78 x 4.5 mm
Electrical Angle	4320°
Height	4.5mm
Length	6.71mm
Maximum Temperature	125°C
Minimum Temperature	-55°C
No. of rotations	12
Operation type	side
Product Type	Cermet trimmer
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	6.78mm
