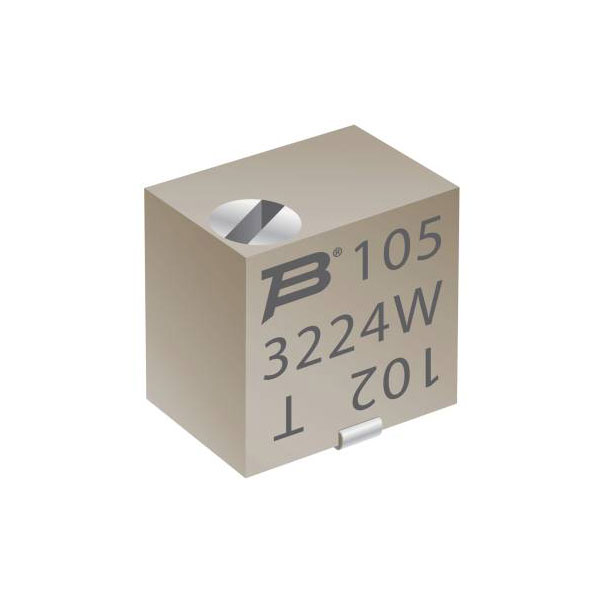

Bourns 3224W-1-504E Cermet trimmer linear 0.25 W 500 kΩ 4320° 1 pc

Bourns 3224W-1-504E is a precise cermet trimmer featuring a linear resistance adjustment of 500 kO and is capable of withstanding a power dissipation of 0.25 W. This product, also known under the alternate description 2996142, offers a rotational travel of 4320 degrees, allowing for fine-tuned control in a variety of circuits. Engineers often employ the Bourns 3224W-1-504E trimmer in applications requiring reliable, adjustable resistance, such as in calibration settings or variable gain control circuits. Its compact design and robust performance make it an ideal choice for integration into dense circuit board configurations where space and precision are crucial.

Resistance	500kΩ
Power Rating	0.25W
Connection	SMT
Content	1
Cross Section	2.5mm
Dimensions	(L x W x H) 4.8 x 3.5 x 5.3 mm
Electrical Angle	4320°
Height	5.3mm
Length	4.8mm
Maximum Temperature	150°C
Minimum Temperature	-65°C
No. of rotations	12
Operation type	top
Product Type	Cermet trimmer
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	3.5mm
