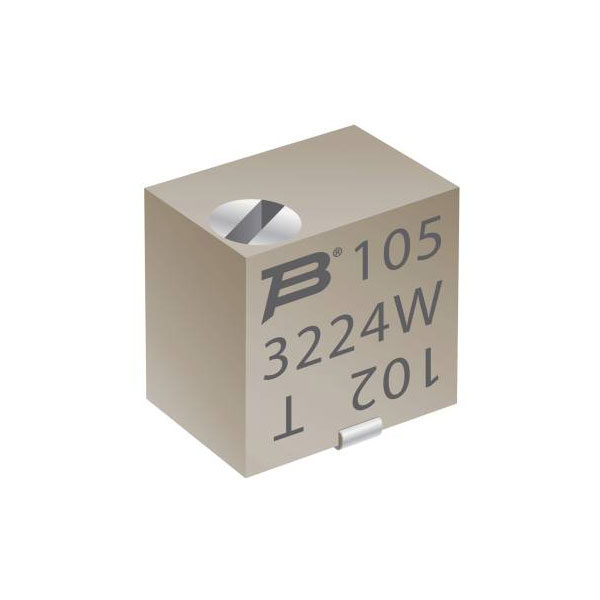

Bourns 3224W-1-102E Cermet trimmer linear 0.25 W 1 kΩ 4320 ° 1 pc Trimmer

Bourns 3224W-1-102E presents a reliable cermet trimmer with a linear resistance value of 1 kO and power dissipation rating of 0.25 watts, suitable for precise adjustment in electronic circuits. The component, catalogued under alternative description 2996133, features a compact design and provides a rotational angle of 4320 degrees, which enables fine-tuning of resistance to achieve optimal performance in various applications. Designed for use in calibration and adjustment tasks, this trimmer potentiometer is commonly utilised in signal processing units, control systems, and other circuits where precise electrical adjustments are required.

Type	Cermet Trimmer
Resistance	1kΩ
Tolerance	± 10%
Power Rating	0.25W
Adjustment Type	Top
Number of Turns	12
Pitch	2.54mm
Connection	SMT
Content	1
Cross Section	2.5mm
Dimensions	(L x W x H) 4.8 x 3.5 x 5.3 mm
Electrical Angle	4320°
Height	5.3mm
Length	4.8mm
Maximum Temperature	150°C
Minimum Temperature	-65°C
Operation type	top
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	3.5mm
