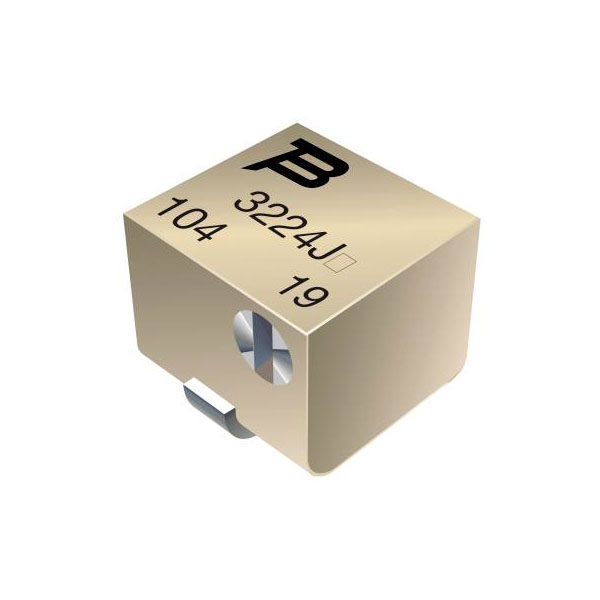

Bourns 3224J-1-501E Cermet trimmer 0.25 W 500 Ω 4320° 1 pc linear

Bourns 3224J-1-501E introduces a cermet trimmer potentiometer with a resistance of 500 ohms and a power rating of 0.25 watts, designed to provide precision in circuit adjustments. This product offers an impressive rotational life with 4320 degrees of adjustment, ensuring fine-tuning capabilities for various electronic applications. Engineers commonly utilise such components in device calibration, tuning filter circuits, adjusting sensor inputs, or balancing bridge circuits. As an alternate description, this component is also referred to as 2996129, confirming its identity and specifications for use in detailed engineering documentation.

Type	Cermet Trimmer
Resistance	500Ω
Tolerance	± 10%
Power Rating	0.25W
Adjustment Type	Side
Number of Turns	12
Pitch	2.54mm
Connection	SMT
Content	1
Cross Section	4.8mm
Dimensions	(L x W x H) 4.8 x 4.6 x 3.71 mm
Electrical Angle	4320°
Height	3.71mm
Length	4.8mm
Max. temperature	150°C
Maximum Temperature	150°C
Min. temperature	-65°C
Minimum Operating Temperature	-65°C
Operation type	side
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.6mm
