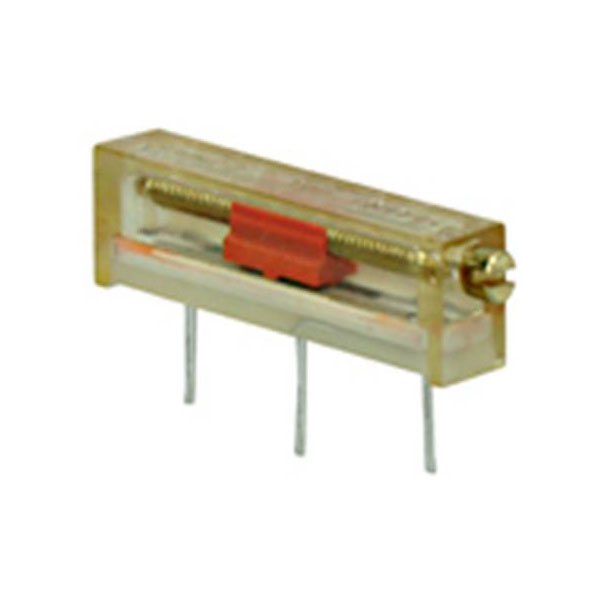

Bourns 3006P-7-504LF Cermet trimmer linear 500 kOhm 0.75 W 5400° 1 pc

Bourns 3006P-7-504LF cermet trimmer resistor is designed to provide precise variable resistance with a linear response characteristic, rated for 500 kOhm with a power rating of 0.75 watts. The device features a total mechanical rotation of 5400°, ensuring ample adjustment range for fine-tuning applications. This product, alternatively described as 2996122 - Bourns 3006P-7-504LF, is particularly suitable for use in circuit design where precise resistance calibration is necessary, such as in the configuration of audio equipment, sensor calibration, and other sensitive electronic applications requiring stable performance. Assemblies making use of this component will benefit from its reliability and compact form factor, aligning well with both analogue and digital circuits. Its robust construction ensures a reliable solution for variable resistor applications used in industrial and consumer electronics.

Type	Cermet Trimmer
Resistance	500kΩ
Tolerance	± 10%
Power Rating	0.75W
Adjustment Type	Side
Number of Turns	15
Pitch	12.7 x 5.08mm
Connection	Solder pins
Content	1
Dimensions	(L x W x H) 19 x 4.83 x 6.35 mm
Electrical Angle	5400°
Height	6.35mm
Length	19mm
Maximum Temperature	125°C
Minimum Temperature	-55°C
Operation type	side
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.83mm
