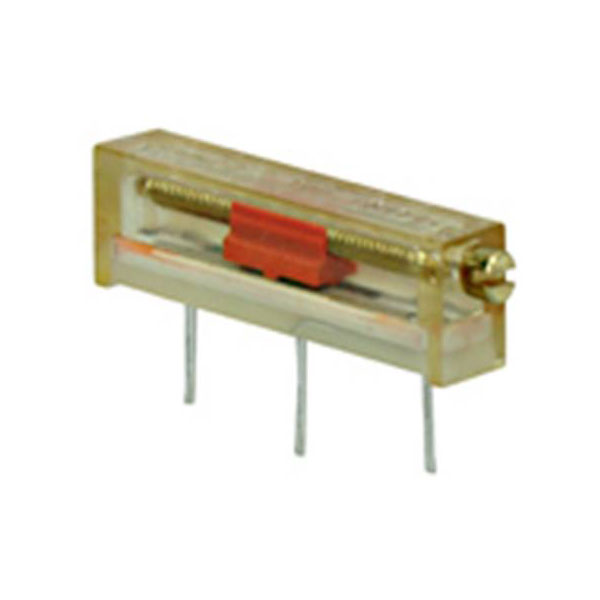

Bourns 3006P-7-501LF Cermet trimmer linear 0.75 W 500 Ω 5400 ° 1 pc

Bourns 3006P-7-501LF, also known as 2996119, is a cermet trimmer resistor designed for precision and reliability in electronic applications. This product provides a power rating of 0.75 watts and offers a resistance of 500 ohms, ensuring consistent performance in circuits requiring variable resistance adjustment. The model features a linear configuration and a full adjustment range of 5400 degrees, allowing for precise fine-tuning in a compact form factor. Typically employed in calibration circuits, sensor signal adjustments, and tuning applications, this trimmer resistor is integral to engineering solutions that demand accurate resistance control and stability.

Type	Cermet Trimmer
Resistance	500Ω
Tolerance	± 10%
Power Rating	0.75W
Adjustment Type	Side
Number of Turns	15
Pitch	12.7 x 5.08mm
Connection	Solder pins
Content	1
Dimensions	(L x W x H) 19 x 4.83 x 6.35 mm
Electrical Angle	5400°
Height	6.35mm
Length	19mm
Maximum Temperature	125°C
Minimum Temperature	-55°C
Operation type	side
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.83mm
