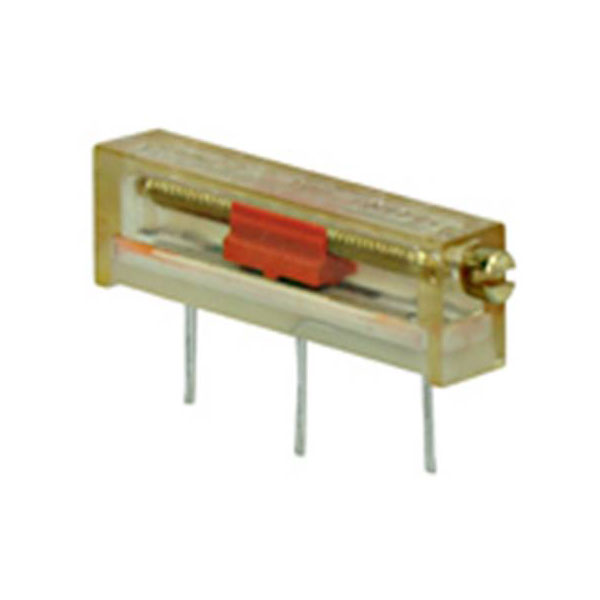

Bourns 3006P-7-203LF Cermet trimmer linear 0.75 W 20 kΩ 5400 ° 1 pc

Bourns 3006P-7-203LF is a cermet trimmer with a linear resistance adjustment, specifically designed to offer precise tuning of circuit parameters. This component, also referenced as 2996116, features a resistance value of 20 kO, a power rating of 0.75 watts, and a rotational range of 5400 degrees, making it well-suited for applications requiring fine adjustment and stability in electrical circuits. It is typically employed in settings such as calibration equipment, sensor interfaces, and analogue device assemblies, where reliable performance and durability are essential. Its robust cermet construction ensures long-term reliability and resistance to environmental variations, making it a preferred choice for precision engineering tasks.

Type	Cermet Trimmer
Resistance	20kΩ
Tolerance	± 10%
Power Rating	0.75W
Adjustment Type	Side
Number of Turns	15
Pitch	12.7 x 5.08mm
Connection	Solder pins
Content	1
Dimensions	(L x W x H) 19 x 4.83 x 6.35 mm
Electrical Angle	5400°
Height	6.35mm
Length	19mm
Maximum Temperature	125°C
Minimum Temperature	-55°C
Operation type	side
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.83mm
