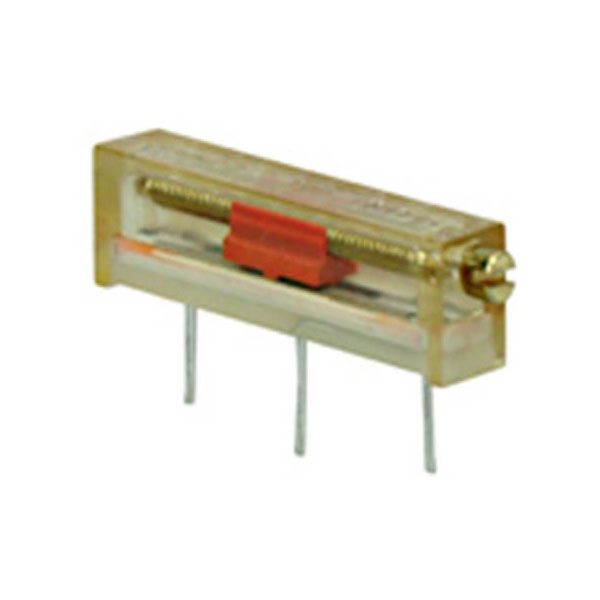

Bourns 3006P-7-201LF Cermet trimmer linear 0.75W 200Ω 5400° 1pcs

Bourns 3006P-7-201LF is a precision cermet trimmer featuring a linear adjustment mechanism, identified by the alternate description 2996114. This device is designed to provide reliable variable resistance in electronic circuits, with a power rating of 0.75 watts and a resistance value of 200 ohms. Its adjustment span of 5400 degrees allows for fine-tuning in a wide variety of settings, making it suitable for applications such as calibration, tuning, and testing in professional audio equipment, industrial controls, and instrumentation systems. The robust construction of this component ensures longevity and stability, particularly in environments requiring precise electrical performance.

Type	Cermet Trimmer
Resistance	200Ω
Tolerance	± 10%
Power Rating	0.75W
Adjustment Type	Side
Number of Turns	15
Pitch	12.7 x 5.08mm
Connection	Solder pins
Content	1
Dimensions	(L x W x H) 19 x 4.83 x 6.35 mm
Electrical Angle	5400°
Height	6.35mm
Length	19mm
Maximum Temperature	125°C
Minimum Temperature	-55°C
Operation type	side
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.83mm
