Block VC5,0/1/9 PCB Mount Transformer 230V to 9V AC 5VA 555mA

Block
Extended range
Order Code:

11-5065

Brand: Block MPN: VC 5,0/1/9 EAN-13: 4016138537635
Qty Unit Price (Ex VAT)
1+ £6.50
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
22 available to back orderBack-order availability date - 28/06/2025

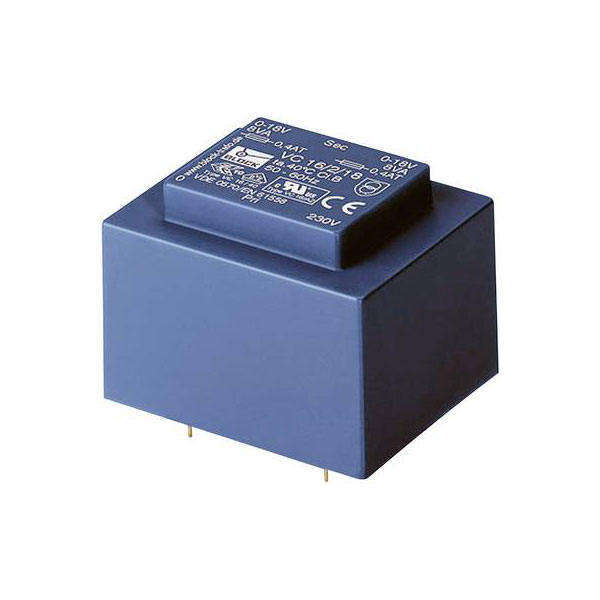

The Block VC 5,0/1/9 PCB mount transformer is a reliable product designed for use in electronic applications, providing 230 V to 9 V AC transformation with a power rating of 5 VA and current of 555 mA. It is ideal for integration into printed circuit boards in automation and power supply systems. Weighing 0.19 kg, this transformer is part of Block's range of compact, efficient transformers suitable for various low-voltage applications.
Type PCB mount transformer
Connection Soldering
Efficiency 68%
Frequency 50 - 60Hz
Input voltage 230V
Input voltage (number x voltage) 1 x 230 V
Insulation class VDE=B, UL=105
Max. ambient temperature +50°C
Misc Attribute VC 5,0/1/9
No. of inputs 1
No. of outputs 1
Output Current 555mA
Output voltage (number x voltage) 1 x 9 V AC
Power 5VA
RoHS-compliant Yes
Test mark C-UL-US, ENEC 10 (VDE)
Test voltage 5000V
Weight 0.19kg
