Block VC10/2/15 Transformer PCB Mount 1x230V 2x15VAC 10VA 333mA

Block
Extended range
Order Code:

11-5063

Brand: Block MPN: VC 10/2/15 EAN-13: 4016138537802
Qty Unit Price (Ex VAT)
1+ £7.54
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
24 available to back orderBack-order availability date - 27/06/2025

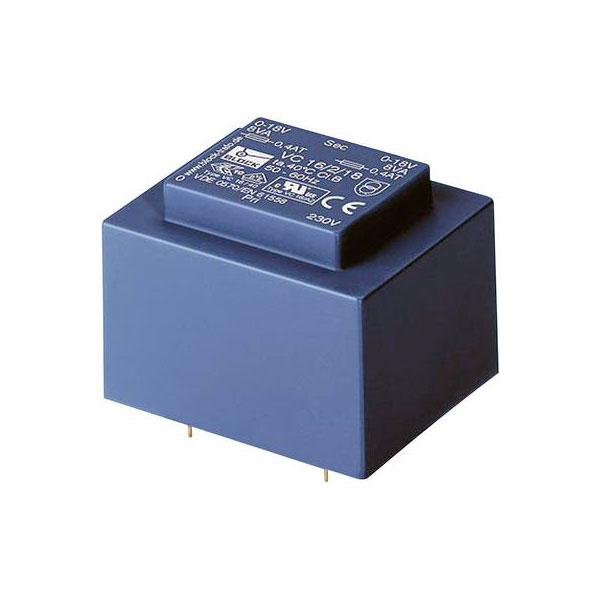

The Block VC 10/2/15 is a PCB mount transformer with a primary voltage of 230 V and dual secondary outputs of 15 V AC. This transformer has a power rating of 10 VA and can deliver a current of 333 mA. It is typically used in printed circuit board applications for automation and power supply solutions.
Type PCB mount transformer
Connection Soldering
Efficiency 74%
Frequency 50 - 60Hz
Input voltage 230V
Input voltage (number x voltage) 1 x 230 V
Insulation class VDE=B, UL=105
Max. ambient temperature +40°C
Misc Attribute VC 10/2/15
No. of inputs 1
No. of outputs 2
Output Current 333mA
Output voltage (number x voltage) 2 x 15 V AC
Power 10VA
RoHS-compliant Yes
Test mark C-UL-US, ENEC 10 (VDE)
Test voltage 5000V
Weight 0.28kg
