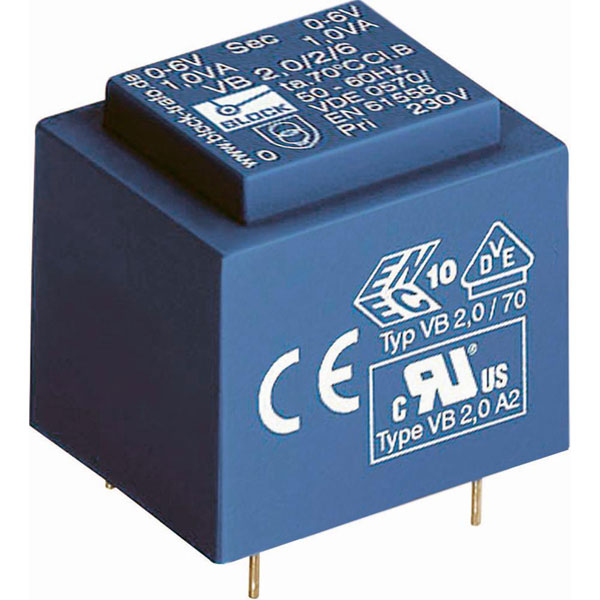

Block VB 2,0/2/9 - PCB Mount Transformer 2VA 2x9V 2 x 222mA

The Block VB PCB Mount Transformer 2VA, 2 x 9V, 2 x 222mA has been designed for high ambient temperatures and is unconditionally short-circuit proof. This high quality transformer is also equipped with double output voltage for series or parallel connection, while boasting permanent corrosion protection, high insulation value and maximum electrical reliability thanks to XtraDensiFill resin encapsulation.

VB polar square wave voltage
Primary pin assignment: Pin 1-2
Secondary pin assignment 1: Pin 4-3
Secondary pin assignment 2: Pin 6-5

• Minimum size in case of high power
• Coil shell in 2-chamber technology
• Self-extinguishing potting material

Dimensional drawing see technical data sheet.

Type	PCB mount transformer
Primary Voltages	230V
Secondary Voltages	2 x 9V
Power Rating	2VA
Number of Outputs	2
Weight	0.1kg
